FTC Starter Kit Upgrade Pack (2025-2026 to 2026-2027 Season)
Bring last season's goBILDA® FTC kit up to spec for 2026-2027, adding only the new parts.
Out of Stock
Sign up to get notified when it's available to order.
Everything that changed between the 2025-2026 and 2026-2027 goBILDA® FTC Starter Kits, packed into one box, so your team can carry last season's parts straight into the new one.
A new season normally means a new kit, and buying the full kit again would double up on the motors, servos, battery and hardware you already own. This pack contains only the components goBILDA added for 2026-2027: clear polycarbonate grid plates, extra U-Channel, longer REX® shafting, a Compact ServoBlock® and a full set of intake wheels.
Once it's merged with your existing kit, your inventory matches the parts list behind goBILDA's 2026-2027 StarterBot for BIOBUZZ™ (presented by RTX). That design uses a 6WD drop-centre chassis, a GripForce Gecko™ Wheel intake and a shooter mechanism, and has a mecanum-drive variant built with a Strafer® Chassis Kit (sold separately).
Features
- Stretches team budgets by supplying only the new parts: no duplicate motors, servos, battery or charger
- Seven 48mm GripForce Gecko™ Wheels and sixteen 30A-durometer Intake Roller Wheels, all on 8mm REX® bores, cover the parts an intake like the StarterBot's is built from
- Clear 1.5mm polycarbonate grid plates in three widths (40, 88 and 216mm x 352mm) for lightweight panels, guards and ramps that let you see the mechanism behind them
- Stainless steel 8mm REX® shafts (240mm and 264mm) give positive drive with no slipping, with an E-clip for quick component retention
- Compact ServoBlock® adds a supported output for a standard-size H25T spline servo, taking the radial load off the servo itself
- Extra 1120 Series U-Channel, Dual Block Mounts and spacers to tie the new mechanisms into your chassis
- Genuine goBILDA® components that bolt straight onto the goBILDA hole pattern you already build with
Specifications
| Property | Specification |
|---|---|
| Upgrades To | goBILDA® FTC Starter Kit (2026-2027 Season) Standard |
| Unique Components | 16 |
| Total Pieces | 147 (including 100 zip ties) |
| Shaft Standard | 8mm REX® |
| Grid Plate Material | Clear polycarbonate, 1.5mm thick |
Resources

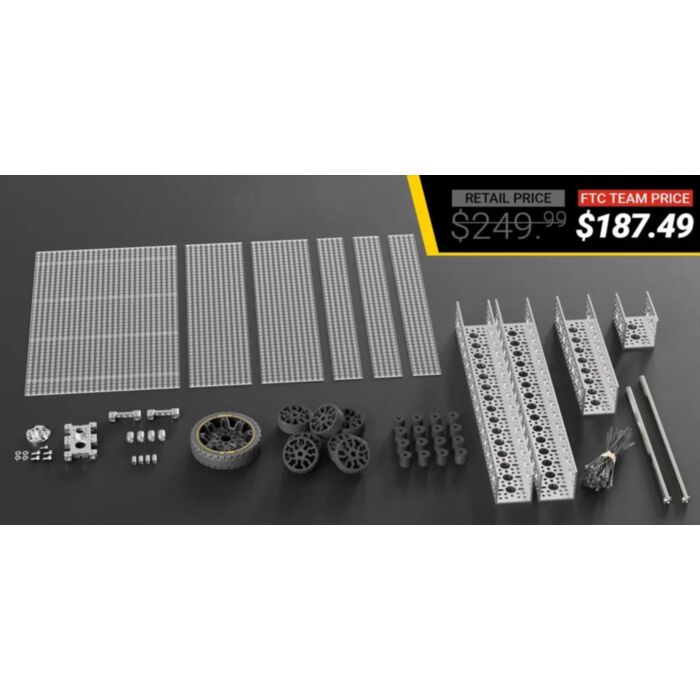

What's Included
- 3x Clear Polycarbonate Grid Plate (1.5mm Thickness, 5 x 44 Hole, 40 x 352mm)
- 2x Clear Polycarbonate Grid Plate (1.5mm Thickness, 11 x 44 Hole, 88 x 352mm)
- 1x Clear Polycarbonate Grid Plate (1.5mm Thickness, 27 x 44 Hole, 216 x 352mm)
- 1x 1120 Series U-Channel (2 Hole, 72mm Length)
- 1x 1120 Series U-Channel (8 Hole, 216mm Length)
- 2x 1120 Series U-Channel (15 Hole, 384mm Length)
- 2x 1205 Series Dual Block Mount (1-5)
- 4x 1502 Series 4mm ID Spacer (6mm OD, 11mm Length)
- 4x 1522 Series 8mm ID Spacer (10mm OD, 12mm Length)
- 1x 8mm REX® Shaft with E-Clip (Stainless Steel, 240mm Length)
- 1x 8mm REX® Shaft with E-Clip (Stainless Steel, 264mm Length)
- 100x Zip Tie (100mm Length, Black)
- 1x Compact ServoBlock® (43mm Width, for Standard Size H25T Spline Servo, Hub-Shaft)
- 7x GripForce Gecko™ Wheel (8mm REX® Bore, 48mm Diameter)
- 16x Intake Roller Wheel (8mm REX®, 16mm Diameter, 16mm Width, 30A Durometer)
- 1x Hogback Traction Wheel (96mm Diameter, 50A Durometer)
