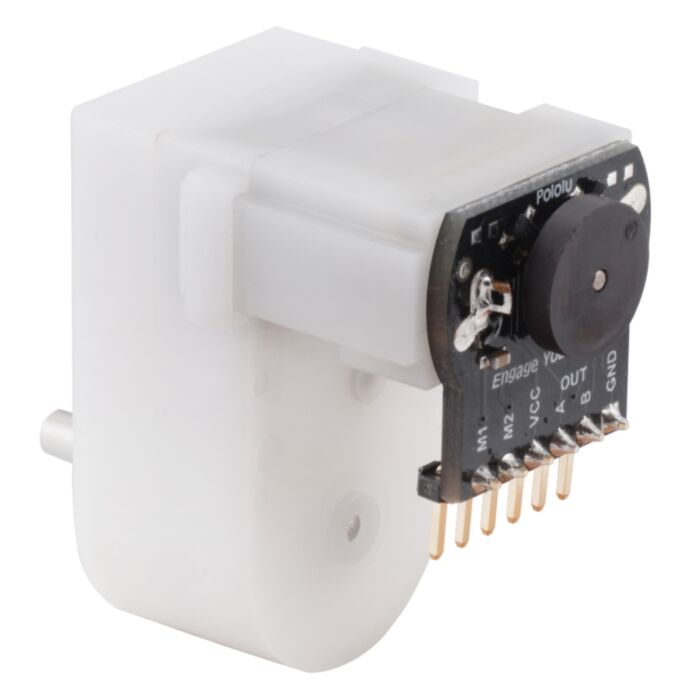

Gearmotor and Encoder Assembly for Romi/TI-RSLK MAX

SKU: POLOLU-3675 Brand: Pololu

This replacement gearmotor for the Romi/TI-RSLK MAX has an encoder already installed. The assembly is ready to plug into corresponding headers on our...

$33.55 AUD, inc GST

$30.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $29.28 (exc GST)
25+ $28.36 (exc GST)

This product consists of an item #1520 plastic gearmotor, which is the same gearmotor included with the Romi Chassis Kits, with a Romi encoder already installed.

The encoder has 0.1"-pitch (2.54 mm) male headers already soldered that allow it to plug into corresponding female headers on Pololu's various Romi electronics modules, including the Romi 32U4 control board and the Romi Motor Driver and Power Distribution Board.

The Romi Encoder can plug directly into the Motor Driver and Power Distribution Board for Romi Chassis.

For more information on the gearmotor performance, see the item #1520 product page. For more information on how to use the Romi encoder, see the item #3542 product page.

People often buy this product together with:

Machine Hex Nut: #2-56 (25-pack)

Machine Screw: #2-56, 1/4" Length, Phillips (25-pack)

Aluminum Standoff: 1-1/2" Length, 2-56 Thread, M-F (4-Pack)

Dimensions

Weight:	21 g

General specifications

Shaft type:	offset 3mm D
Gear ratio:	120:1
No-load speed @ 4.5V:	150 rpm
No-load current @ 4.5V:	130 mA
Stall current @ 4.5V:	1250 mA
Stall torque @ 4.5V:	25 oz·in¹

Notes:

1: Note: the gearbox's built-in clutch might start slipping at a lower torque.
