Firebeetle Covers-OLED12864 Display

SKU: DFR0507 Brand: DFRobot

DFRobot FireBeetle series is low-power development board designed for the IoT projects. This FireBeetle covers display module is equipped with 128x64 resolution...

$23.70 AUD, inc GST

$21.55 AUD, exc GST

Available with a lead time
Expect dispatch between May 08 and May 14

Quantity Discounts:

10-25 $20.90 (exc GST)
25+ $20.47 (exc GST)

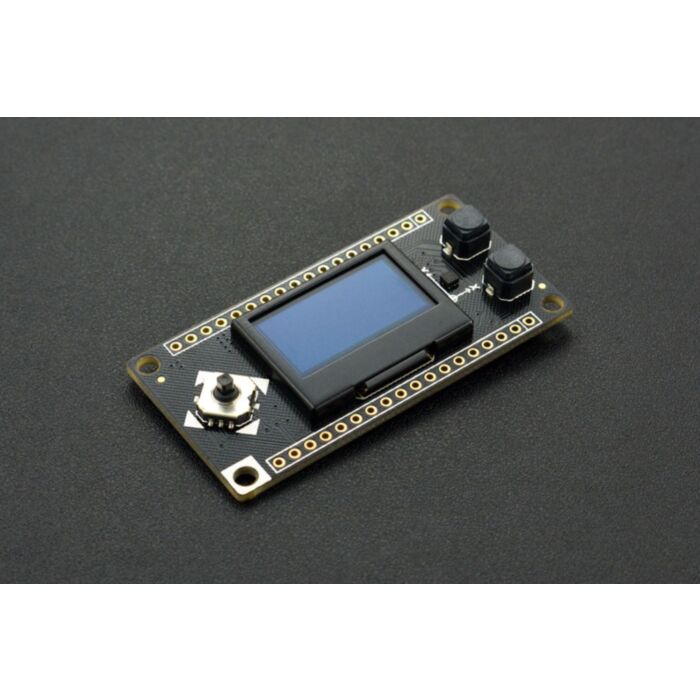

DFRobot FireBeetle series is low-power development board designed for the IoT projects. This FireBeetle covers display module is equipped with 128x64 resolution OLED and a new version of SSD1360 driver IC, uses I2C interface, supports for the Arduino library and microPython coding program, fully compatible with the Gravity I2C OLED-2864 screen.

OLED screen has a protective frame to protect the screen, it prevents the finger from being scratched on the edge of the glass. The OLED 12864 display module also integrates the GT30L24A3W multi-language font library chip and the BMA220 three-axis accelerometer. In addition, the FireBeetle Covers-OLED12864 display features an analog directional key and two independent digital keys A and B.

Features

Support Multi-language Font
Built-in 3-axis acceleration sensor

Specification

Voltage Range: 3.7V-5.5V
2 User Buttons: Using digital port D4, D8 detection mode
5-way Switch: Using analog port A0 detection mode

Three-axis Accelerometer BMA220: IIC

Data Bus: IIC
Dimension: 0.079x0.079x0.035in/2x2x0.9mm
Resolution: 6 bit
Range: 2/4/8/16g
Power Consumption: 250uA

OLED

Model: UG-2864HLBEG01
Dimension: 0.96in
Color: blue
Data Bus: IIC
Pixel:128x64

Font Chip: GT30L24A3W
Data Bus: SPI
Character Set:

GB18030 Simplified Chinese/Traditional Chinese
KSC5601 Korean
JIS0208 Japanese
180 Foreign Font
Support for Multinational Unicode
IS08859 and CODEPAGE
Chinese Character Size:12 dot matrix, 16dot matrix, 24dot matrix
Foreign Character Size:16 dot matrix, 24 dot matrix
Working Current: 12mA

Contains

Firebeetle Covers-OLED12864 Display x1
18pin-2.54mm Pin Header ×2
18pin-2.54mm Long Pin Header ×2
