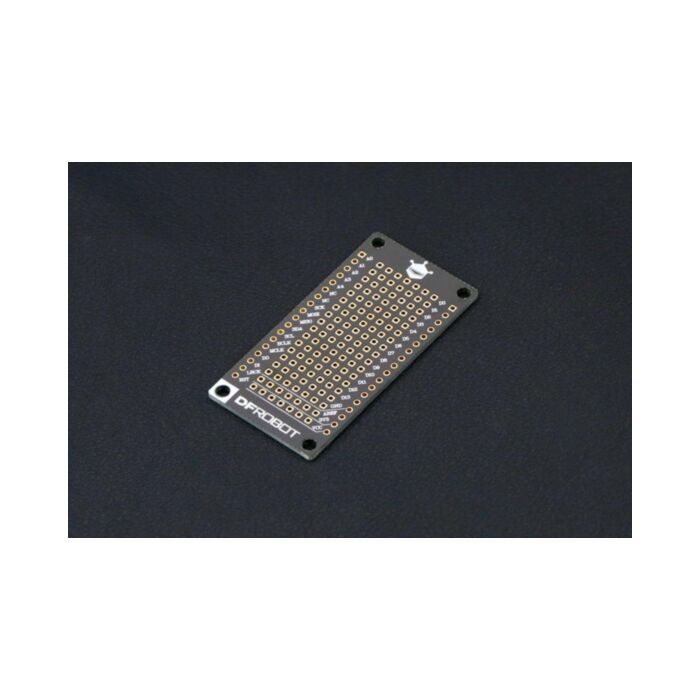

FireBeetle Covers-Proto Board

SKU: DFR0481 Brand: DFRobot

DFRobot FireBeetle series is the low-power consumption micro-controller intentionally designed for Internet of Things (IoT). The series micro-controllers aims at...

$6.45 AUD, inc GST

$5.86 AUD, exc GST

Available with a lead time
Expect dispatch between May 07 and May 13

Quantity Discounts:

10-25 $5.69 (exc GST)
25+ $5.57 (exc GST)

Introduction

DFRobot FireBeetle series is the low-power consumption micro-controller intentionally designed for Internet of Things (IoT). The series micro-controllers aims at IoT node of low-power consumption, attending to build the IoT hardware platform quickly and conveniently. There are three types of FireBeetle, containing Boards (main control), Covers (expansion boards) and related Accessories.
Proto Board is compatible with products of FireBeetle series. There are 14×7 general 2.54mm solder holes in the board of standard spacing. The prototyping boards connect to one master board with VCC, 3.3V and GND soldering pads. These features of Proto Board contribute to it an ideal vehicle for soldering any electronic component. Moreover, the ports compatible with other projects of FireBeetle makes it the best choice for overlay circuit prototypes.

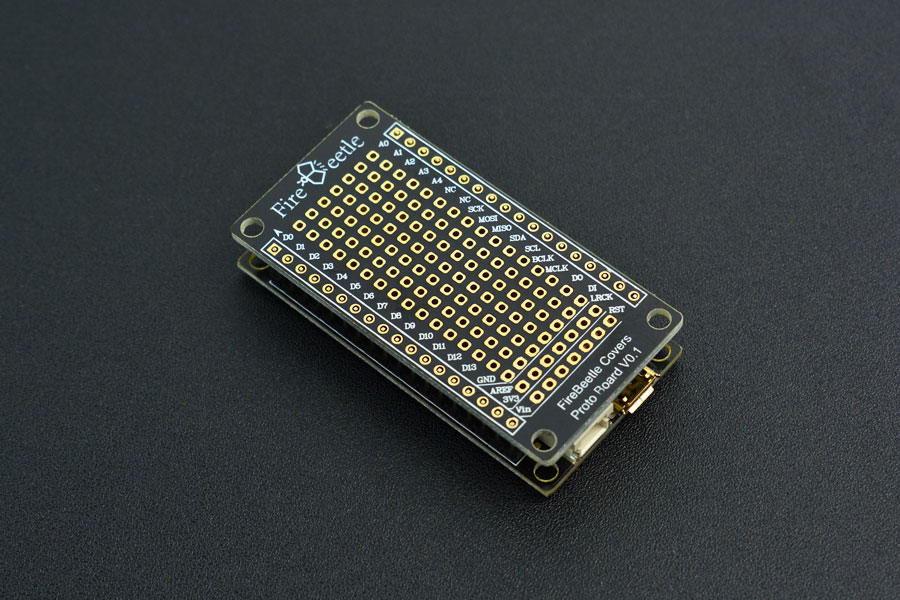

FireBeetle Connection

FEATURES

Compatible with products in the DFRobot FireBeetle Series, plug and play

Cost-Effective

Small size, convenient to install

Specification

14×7 general 2.54mm soldering pad

Dimension: 29.00×58.00mm/ 1.41×2.28 inches

Weight: 18 g

Documents

Schematic
Layout

Parts List

FireBeetle Covers-Proto Board x1
18 pin-2.54mm pin x4
18 pin-2.54mm long pin header x4
