FireBeetle Board-328P with BLE4.1

Skip to the beginning of the images gallery

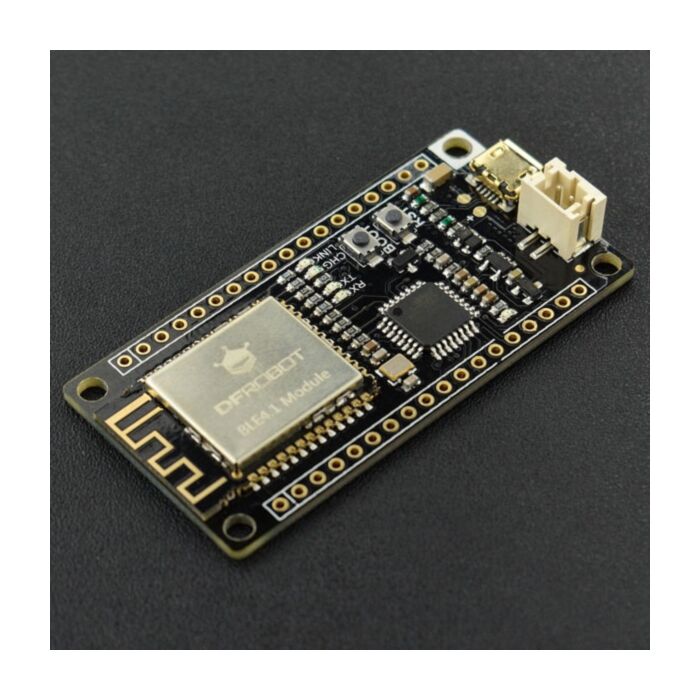

FireBeetle Board-328P with BLE4.1

SKU: DFR0492 Brand: DFRobot

DFRobot FireBeetle series are low power consumption microcontrollers designed for Internet of Things (IoT) development. This Bluetooth controller combines Bluetooth...

$31.60 AUD, inc GST

$28.73 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 02

Quantity Discounts:

10-25 $27.86 (exc GST)
25+ $27.29 (exc GST)

Introduction

DFRobot FireBeetle series are low power consumption microcontrollers designed for Internet of Things (IoT) development. This Bluetooth controller combines Bluetooth Low Energy 4.1 with Arduino controller, offering functions similar to the former Bluno series but with lower power consumption.

FireBeetle BLE 4.1 is compatible with Bluno series (BLE 4.0) and performs much better. It equipped with more stable DIALOG Bluetooth 4.1 chip, supporting maximum 4Kbyte/s transmission rate and low power consumption (25uA POWER DOWN). It can be directly applied to low power consumption application such as wearable and intelligent tools and so on.

It also supports multiple Bluetooth cascade, KISS connection (approach connection) and compatible with Bluno series. Its connection can be realized by holding host BOOT and moving to the target peripheral device.

FEATURES

Support Arduino IDE program

Support BLE 4.1 central and peripheral switch

Support Bluetooth serial port data transmit

Support Bluetooth peer to peer (P2P) wireless programming

Support Bluetooth 4.1 multiple device cascade (maximum:4)

Support Arduino Bluetooth library (support multiple Bluetooth connection)

Support low power consumption Bluetooth (standby current: 25uA; enabled interrupt current: 70uA)

Double interruption to wake up:

BLE4.1 awake Atmage328P by D2 (high level awake)

Atmage328P awake BLE4.1 by D3 (low level awake)

Support KISS connection (approach connection)

Support Bluetooth firmware update

Support USB charge

Support lithium battery power supply

Equipped with status LEDs

Specification

Processor: ATMEGA328P

Bootloader: Arduino Pro or Pro Mini, ATmega328 (3.3V, 8MHz)

Operating Current: 3.3V

VCC I/O Voltage: 3.7V~5.5V

Lithium Battery Voltage: 3.7V

Support maximum 4Kbyte/s transmission rate (more device, lower rate)

Support low power consumption: 25uA (POWER DOWN); 70uA (enabled interruption)

Support maximum discharge current: 600mA (LDO-3.3V OUTPUT)

Support maximum charge current: 400Ma

Digital Interfaces: 14

Analog Interfaces: 6

SPI: 1

I2C: 1

UART: 1

LED_BUILTIN: D13

Interface Mode: 2.54mm (Pin/Female header), soldering free in default

Dimension: 58 * 29 mm/ 2.28 * 1.14 inches

Documents

Product wiki

Parts List

FireBeetle Board-328P with BLE4.1 x1

18 pin-2.54mm x2

18 female header-2.54mm x2
