Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm)

Skip to the beginning of the images gallery

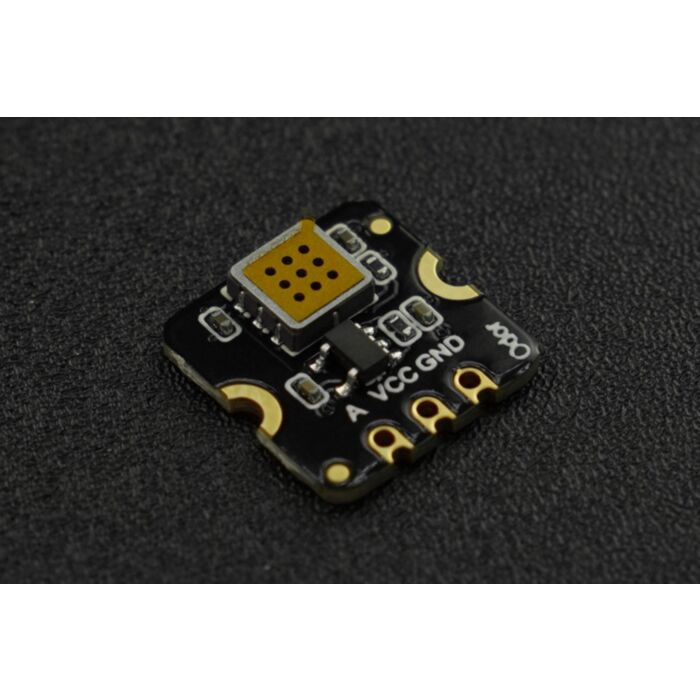

Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm)

SKU: SEN0571 Brand: DFRobot

Get the most accurate odor detection readings with the DFRobot advanced electronic nose sensors. The Fermion: Arduino e-nose MEMS Odor Detection Sensor...

$8.96 AUD, inc GST

$8.15 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 20

Fermion: MEMS Odor Smell Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure odor gas concentration, suitable for breath detector, odor detection and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing theGravity: Factory Calibrated Electrochemical Gas Sensor Series.

Wiring Diagram of Fermion: MEMS Odor Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS Odor Sensor and Arduino UNO

Precautions for use

Kindly remove the protective film before usage.

To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

Prevent contamination from alkalis, alkali metal salts, and halogens.

Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

Avoid contact with water, condensation, and freezing.

Minimize excessive vibration, impact, and dropping.

Please refrain from employing this module in systems that involve personal safety concerns.

For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

Features

Compact size, measuring only 13*13*2.5mm

Low power consumption, operating current <20mA

High sensitivity and rapid response recovery

Advanced MEMS technology

Applications

Aviation safety: monitors the presence of hazardous gases or vapors in the aircraft cabin or cockpit.

Spoiled food material detection: evaluates the freshness and safety of food products by detecting the emission of odor compounds.

Body odor detection: analyzes the human body odor and provides feedback or suggestions for personal hygiene or health care.

Other health applications: diagnoses or monitors various health conditions by detecting the changes in breath or skin odor.

Specification

Gas detected: H2S, EtOH, acetone, etc

Detection range: 0.5-50ppm

Operating voltage: 3.3-5V

Operating current: <20mA

Output signal: Analog voltage

Sensitivity: R0(in air)/Rs(in 5ppm H2S) = 2

Operating temperature: -10°C - 50°C

Operating humidity: 15-90%RH (non-condensing)

Lifespan: =5 years (in air)

Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1"

Projects

Project: Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.

Documents

Product wiki

Schematics & Dimension

Characteristic Parameter

Parts List

Fermion: MEMS Odor Smell Gas Detection Sensor (breakout) × 1

2.54mm pitch header pin × 1
