Fermion: GR10-30 Gesture Sensor (Breakout, UART & I2C, 12 Gestures, 0~30cm)

Skip to the beginning of the images gallery

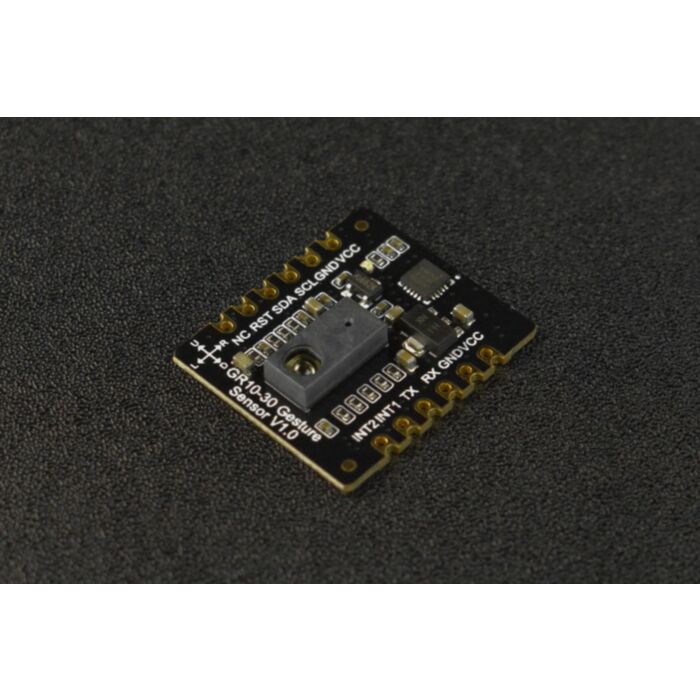

Fermion: GR10-30 Gesture Sensor (Breakout, UART & I2C, 12 Gestures, 0~30cm)

SKU: SEN0543 Brand: DFRobot

Fermion: GR10-30 Hand Gesture Sensor can recognize 12 hand gestures, has high accuracy within a sensing distance of up to 30 cm, and provides two...

$34.50 AUD, inc GST

$31.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

10-25 $30.43 (exc GST)
25+ $29.80 (exc GST)

This GR10-30 gesture sensor is capable of recognizing 12 hand gestures: move up, down, left, right, forward & backward, rotate clockwise & counterclockwise, rotate clockwise & counterclockwise continuously, hover, and wave. And users can set parameters such as the gesture trigger distance, the hand rotation angle and hovering time that can be recognized, and the size of the recognition window to get more accurate results.

The GR10-30 features stable performance and high accuracy within a sensing distance of up to 30cm. Meanwhile, it provides two interrupt pins for indicating if a gesture trigger occurs and if an object enters the recognition range.

Most gesture recognition sensors use the PAJ7620U2 chip, which has a recognition distance of 20cm and supports 9 types of hand gestures (compared to GR10-30, it lacks three gestures: clockwise and counterclockwise continuous rotation, and hovering).

The sensor is well suited to non-contact operation applications like gesture remote controllers, robot interaction, human-machine interface control, lighting control, and gesture game machine.

Connection Diagram

Features

Maximum recognition distance of 30cm

Capable of recognizing 12 gestures

Configurable recognition threshold & other parameters

Support UART & I2C communication

Applications

Gesture Remote Controller

Robot Interaction

Human-machine Interface Control

Specification

Supply Voltage: 3.3V to 5V

Operating Current: <10mA

I2C Address: 0x73

Serial Baud Rate: 9600

Maximum Recognition Distance: 30cm

Operating Temperature:0°C to 70°C

Operating Humidity:5%RH to 85%RH

Dimension:20.5×23.5mm/0.81×0.93”

Documents

Product wiki

SEN0543 GR10-30 Register Table (V1.0)

CAD

Parts List

Fermion: GR10-30 Gesture Sensor × 1

2.54-6P Black Single-row Pin Connector × 2
