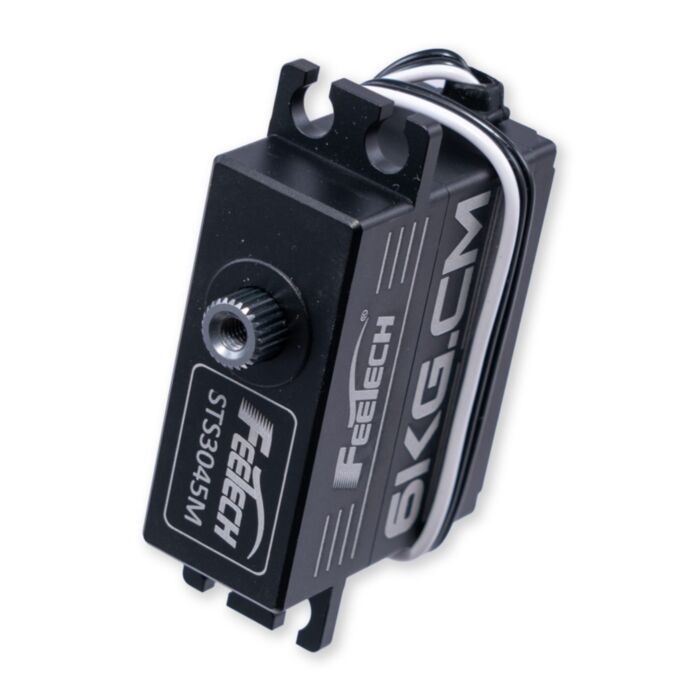

STS3045M - Smart Servo (Packet based Servo, 6kg/cm)

Feetech STS3045M Smart Servo is one of the most intelligent servos on the market today, known for their versatility and ability to support a wide range of control schemes. This packet-based servo is perfect for DIY electronics enthusiasts, robotics engineers, and makers who require precision and power in a compact package.

Operating within a voltage range of 4.8V to 7.4V, the STS3045M Smart Servo is designed to provide consistent performance. It boasts a no-load current of 120mA at 6V, a rated continuous torque of 2kg/cm at 6V, and a peak torque of 6kg/cm at 6V, making it suitable for a variety of applications that require controlled movement.

Constructed with a robust metal gear system, this smart servo ensures durability and longevity. It has a compact size, measuring 36mm x 15mm x 29mm, and a weight of just 34.8g, making it an excellent choice for projects where space is at a premium. With its 25T spline, it offers excellent compatibility with a range of mechanical components.

Whether you are building a robotic arm, an automated window blind system, or a custom drone, the Feetech STS3045M Smart Servo has got you covered. Its capacity to string many servos along the same bus makes it ideal for complex multi-servo setups.

The package includes the STS3045M Micro Servo and a compatible servo horn pack with fasteners, providing you with everything you need to get started with your project.

Invest in the Feetech STS3045M Smart Servo for superior performance, flexibility, and durability in all your DIY electronics and robotics projects.

Specifications

• Model: STS3045M
• Weight: 34.8g

• Operating Voltage: 4.8V - 7.4V
• No load current: 120mA @ 6V
• Rated Continuous torque: 2kg/cm @ 6V
• Peak Torque: 6kg/cm @ 6V
• Stall Current: 1.4A @ 6V

• Gear Type: Metal Gear
• Size: 36mm x 15mm x 29mm
• Spline: 25T

Includes

• STS3045M Micro Servo
• Compatible servo horn pack with fasteners

Datasheet

• STS3045M Datasheet
