ESP32-P4 Dual-Band Wi-Fi 6 Dev Board Kit (Camera, Speaker & External Antenna)

A 400 MHz dual-core RISC-V development board for camera, display and audio projects, with dual-band Wi-Fi 6 and Bluetooth 5 (LE) from an onboard ESP32-C5 co-processor.

This kit pairs the board with a 5 MP Raspberry Pi Camera (B), a speaker, an external FPC Wi-Fi antenna and connecting cables, so camera and audio projects are ready to go. Add a display separately: Waveshare lists its 5, 7, 8 and 10.1 inch DSI touch screens as supported, including the 10.1" DSI Capacitive Touch Display (800×1280).

Built around the ESP32-P4NRW32X with an integrated Image Signal Processor, H.264 encoder and Pixel Processing Accelerator, it suits computer vision and machine vision, smart-home and industrial control panels, and vending machine interfaces.

Getting started is simple:

• Plug in a USB Type-C cable for power, program flashing and serial debugging.

• Develop in ESP-IDF (Waveshare's recommendation), which provides a board support package and the Brookesia application.

• Or use Arduino-ESP32, with board definitions and peripheral examples for version 3.3.11. Waveshare notes that complex examples and display combinations need individual verification.

• Hold BOOT while powering on or resetting to enter download mode.

Features

• Capture and encode Full HD video on-chip: 1080P @ 30 fps H.264 and JPEG encoding from the MIPI-CSI camera input

• Drive high-resolution touch displays smoothly, with a Pixel Processing Accelerator, 2D-DMA and 1080P @ 30 fps JPEG decoding behind the MIPI-DSI output

• Record and play back audio for voice projects using the onboard microphone, ES8311 codec and NS4150B amplifier, which drives the included speaker

• Position the external FPC antenna for the best reception via its U.FL connector

• Run large, graphics-heavy applications with 32 MB of in-package PSRAM and 32 MB of onboard NOR flash

• Connect USB peripherals or act as a USB device through the USB 2.0 High-Speed OTG port; an MX1.25 4-pin to USB adapter cable is included

• Log data and store media on a TF (microSD) card over fast 4-bit SDIO 3.0

• Expand freely with 27 programmable GPIOs on pre-soldered 2×20 pin headers

• Protect firmware and data with Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, a Digital Signature Peripheral and a dedicated Key Management Unit

Specifications

Resources

• Waveshare ESP32-P4-WIFI6-DB Wiki

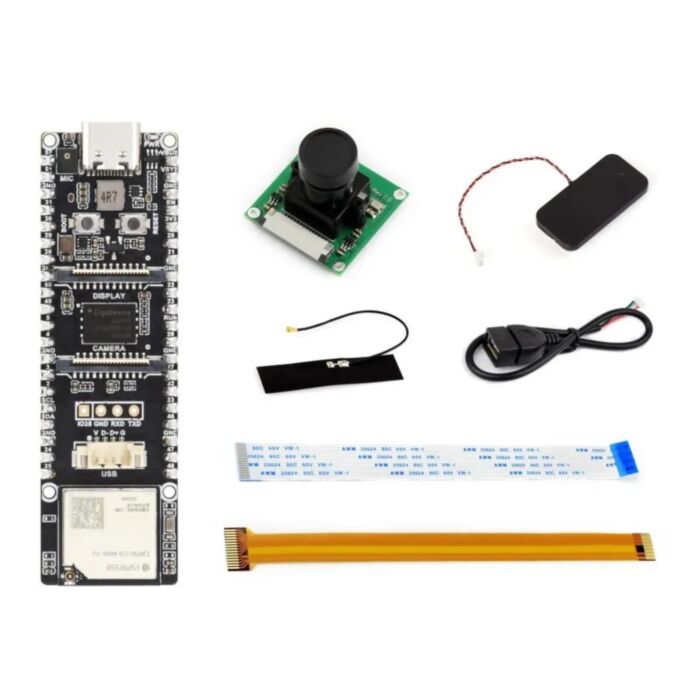

What's Included

• 1x ESP32-P4-WIFI6-DB-UM development board (pin headers pre-soldered)

• 1x Raspberry Pi Camera (B)

• 1x FPC dual-band Wi-Fi antenna

• 1x 15-pin FFC cable

• 1x Raspberry Pi Zero camera cable (approx. 15 cm)

• 1x 8 Ω 2 W speaker

• 1x MX1.25 4-pin to USB adapter cable
