3pi+ 2040 Robot Kit with 30:1 MP Motors (Standard Edition Kit)
Available with a lead time
Expect dispatch between Dec 25 and Dec 30
Quantity Discounts:
- 5-10 $209.41 (exc GST)
- 10+ $202.86 (exc GST)
The 3pi+ 2040 is a versatile, high-performance, user-programmable robot that measures just 9.7 cm (3.8") in diameter. At its heart is a Raspberry Pi RP2040 microcontroller (like the one on the Raspberry Pi Pico), a 32-bit dual-core Arm Cortex-M0+ processor running at 125 MHz, which can be programmed with C, C++, Arduino, or Python. The 3pi+ 2040 has 16 MB (128 Mbit) of flash memory that ships preloaded with a MicroPython interpreter, so you can get started right away by plugging into its USB C port and editing the included example Python programs. For advanced users who want to customize or enhance their robots with additional peripherals, the robot’s power rails, power system controls, and microcontroller’s I/O lines can be accessed via several 0.1"-pitch expansion ports.
|
|
|
The 3pi+ 2040 features two H-bridge motor drivers and a variety of integrated sensors, including a pair of quadrature encoders for closed-loop motor control, a complete inertial measurement unit (3-axis accelerometer, gyro, and magnetometer), five downward-facing reflectance sensors for line-following or edge-detection, and left and right bump sensors along the front face of the robot. Three on-board pushbuttons offer a convenient interface for user input, and a 128×64 graphical OLED display, buzzer, and six RGB LEDs allow the robot to provide feedback.
 |
 |
The robot also features a unique power system that runs the motors at a constant 8 V independent of the battery charge level, so the speed of the motors does not vary with the battery voltage.
The 3pi+ 2040 robot is available as a kit or fully assembled:
| 3pi+ 2040 Version | Products | Micro Metal Gearmotor | Top Speed | Comments |
|---|---|---|---|---|
| Standard Edition | assembled or kit | 30:1 MP 6V | 1.5 m/s | good combination of speed and controllability |
What else you will need
- four AAA batteries: the 3pi+ robot works with both alkaline and NiMH batteries, though Pololu recommend rechargeable NiMH cells
- a USB C cable to connect the robot to your computer for programming and debugging
Assembling the kit version
The following video shows the steps to assemble a different version of the 3pi+ robot (the 3pi+ 32U4 OLED robot), but these steps generally remain the same for the 3pi+ 2040:
Details for item #5004
This product is the kit version of the Standard Edition 3pi+ 2040 Robot. Assembly (including soldering) is required.
 |
|
3pi+ 2040 Robot Kit (Standard or Turtle Edition). |
|---|

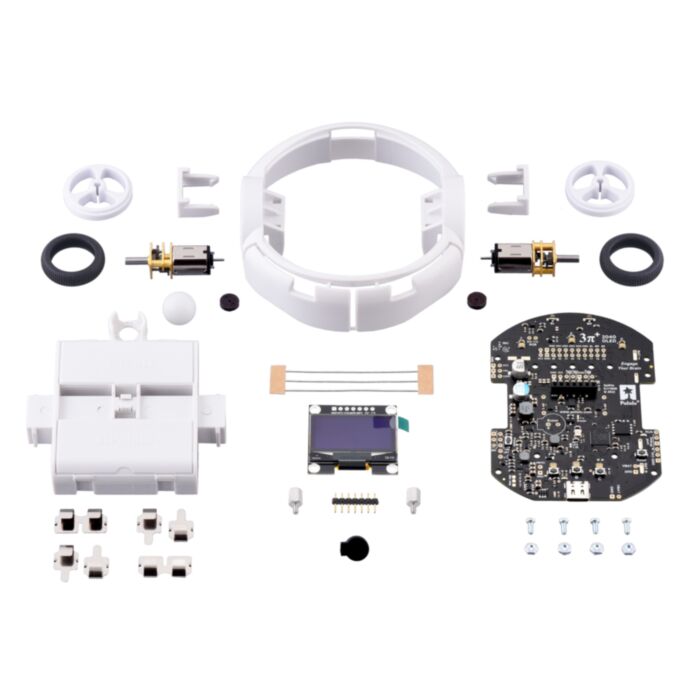

This kit includes:
- 3pi+ Chassis Kit
- 3pi+ 2040 Control Board
- two 30:1 MP 6V Micro Metal Gearmotors with extended motor shafts
- one graphical OLED display
A pre-assembled version of this kit is also available.
Dimensions
| Size: | 97L × 96W × 36H mm |
|---|---|
| Weight: | 100 g1 |
General specifications
| Processor: | RP2040 @ 125 MHz |
|---|---|
| RAM size: | 264 Kbytes |
| Program memory size: | 16 Mbytes |
| Assembled: | N |
| Version: | Standard Edition (30:1 MP Motors) |
Identifying markings
| PCB dev codes: | 3pi04a |
|---|---|
| Other PCB markings: | 0J13959 |
Notes:
- 1
- Of assembled robot without batteries.
Documentation and other information
-
User’s manual for the Pololu 3pi+ 2040 robot.
File downloads
Recommended links
-
3pi+ 2040 Robot Libraries and Example Code
This repository contains libraries and example code for the Pololu 3pi+ 2040 Robot in MicroPython and C.
