DS3231 Precision RTC FeatherWing - RTC Add-on For Feather Boards

Rating:
100% of 100
SKU: ADA3028 Brand: Adafruit
A Feather board without ambition is a Feather board without FeatherWings! This is the DS3231 Precision RTC FeatherWing: it adds an extremely accurate I2C-integrated...
$26.95 AUD, inc GST
$24.50 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 04

Quantity Discounts:

  • 10-25 $23.52 (exc GST)
  • 25+ $22.78 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

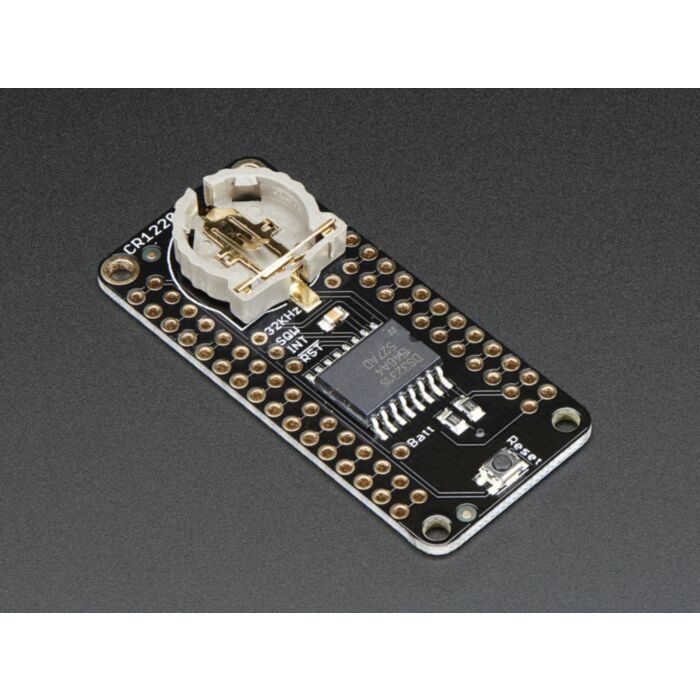

A Feather board without ambition is a Feather board without FeatherWings! This is the DS3231 Precision RTC FeatherWing: it adds an extremely accurate I2C-integrated Real Time Clock (RTC) with a Temperature Compensated Crystal Oscillator (TCXO)  to any Feather main board. This RTC is the most precise you can get in a small, low power package. Using Adafruit's Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight!

Check out Adafruit's range of Feather boards here.

Most RTCs use an external 32kHz timing crystal that is used to keep time with low current draw. And that's all well and good, but those crystals have slight drift, particularly when the temperature changes (the temperature changes the oscillation frequency very very very slightly but it does add up!) This RTC is in a beefy package because the crystal is inside the chip! And right next to the integrated crystal is a temperature sensor. That sensor compensates for the frequency changes by adding or removing clock ticks so that the timekeeping stays on schedule.

With a CR1220 12mm coin cell plugged into the top of the FeatherWing, you can get years of precision timekeeping, even when main power is lost. Great for datalogging and clocks, or anything where you need to really know the time.

A CR1220 coin cell is required to use the battery-backup capabilities! Adafruit don't include one by default, to make shipping easier for those abroad, but we do stock them so pick one up or use any CR1220 you have handy.

Adafruit's tutorial for the DS3231 breakout has all the library and example code you need to get started, works with any and all of Adafruit's Feathers via the Arduino IDE

Check out Adafruit's range of Feather boards here.
