Music Maker FeatherWing w/ Amp - MP3 OGG WAV MIDI Synth Player - Stereo 3W Amplifier
Available with a lead time
Expect dispatch between Nov 25 and Dec 02
Quantity Discounts:
- 10-25 $42.02 (exc GST)
- 25+ $40.71 (exc GST)
Bend all audio files to your will with the Adafruit Music Maker FeatherWing + Amplifier! It's a fun-size version of Adafruit's Music Maker shield for Arduino, and similar to Adafruit's other Music Maker FeatherWing, but this one is even better - with an on-board 3 Watt amplifier! This powerful wing features the VS1053, an encoding/decoding (codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). You can do all sorts of stuff with the audio as well such as adjusting bass, treble, and volume digitally.
All this functionality is implemented in a light-weight SPI interface so that any Feather Board can play audio from an SD card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data from the UART TX pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects!
What a great musical add-on to your Feather! That's why Adafruit spun up this super FeatherWing, perfect for use with a any of Adafruit's Feather Boards!
Here are some specs:
- Features the VS1053B codec chip - decodes Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM, MIDI
- Stereo audio out to any 4ohm speakers (3W max) or 8 ohm speakers (1W max), class D output
- MicroSD card socket, for any FAT16/FAT32 formatted SD card from 64MB or greater
- Built in MIDI synth/drum machine with dozens of instruments
Each order comes with one tested FeatherWing, two 2-pin 3.5mm terminal blocks, and two sticks of 0.1" male headers to plug it into your Feather. Some light soldering is required to attach the through-hole headers and terminal blocks to the PCB for plugging into your Feather Board and speakers.

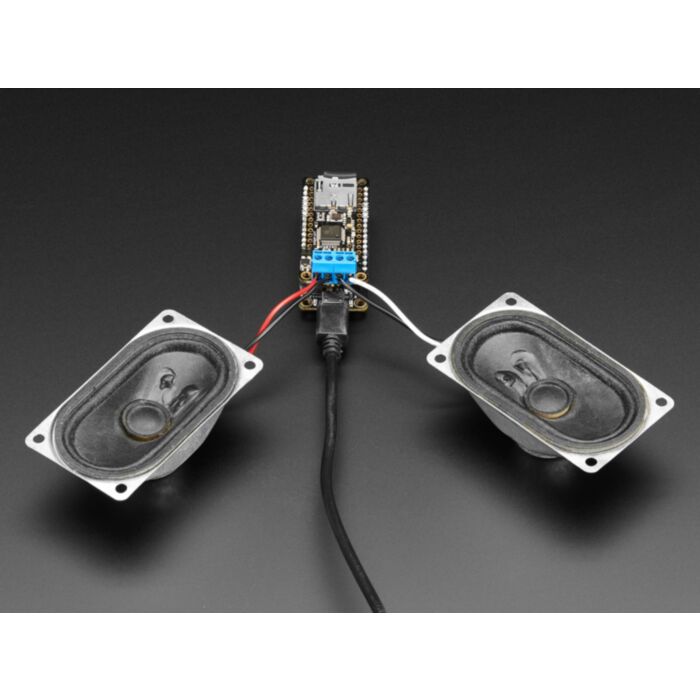

Once you've soldered the terminal blocks in you can connect any speaker you like, such as our 4O 3W or 8O 1W. Hey you can even use a surface transducer! Don't forget to make sure you have a good strong 5V power supply - especially if you're using the 3W 4 ohm speakers! Adafruit's 2.4A power plug is recommended.
Speakers, SD card and Feather Board not included!
Technical Details
Example code, wiring diagrams, library code, schematics and Fritzing object all in the tutorial!
Product Dimensions: 51.0mm x 23.0mm x 3.6mm / 2.0" x 0.9" x 0.1"
Product Weight: 4.8g / 0.2oz
