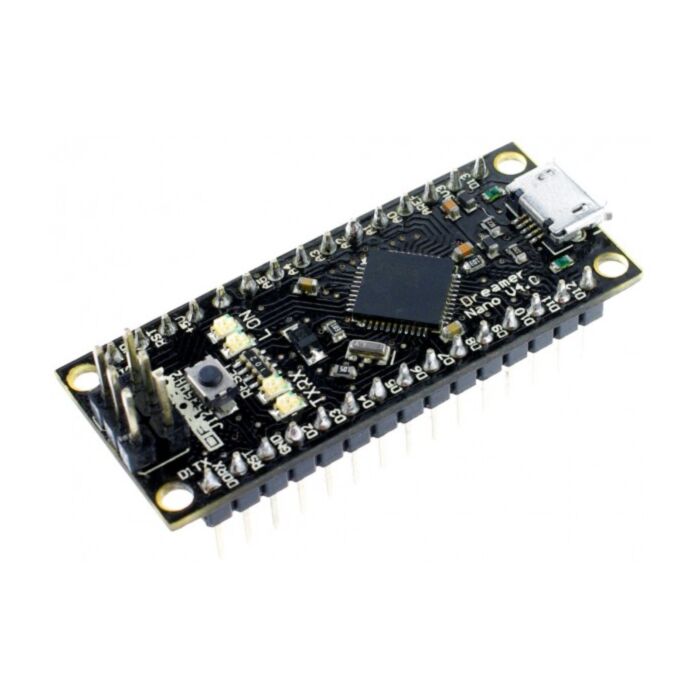

Dreamer Nano V4.0 (Arduino Leonardo Compatible)

SKU: DFR0213

$32.23 AUD, inc GST
$29.30 AUD, exc GST

More Views

Dreamer Nano V4.0 (Arduino Leonardo Compatible)
32.23 AUD

SKU: DFR0213

$32.23 AUD, inc GST
$29.30 AUD, exc GST
Shipping Offer

Introduction

The Dreamer Nano V4.0 is a surface mount breadboard embedded version of the ATMEGA 32U4 with integrated Micro USB. It has everything that Arduino Leonardo has (electrically).Physically, it is just missing power jack to save space.

Using the ATmega32U4 as its sole microcontroller allows it to be cheaper and simpler. Also, because the 32U4 is handling the USB directly, code libraries are available which allow the board to emulate a computer keyboard, mouse, and more using the USB-HID protocol!

The Dreamer Nano v4.0 is compatible with most Nano shield in the market. It's suitable for projects that require a compact size controller system.

Note: The pins supporting I2C/TWI is located at digital pins D2(SDA) and D3(SCL).

Specification
  • Microcontroller:ATmega32u4
  • Operating Voltage:5V
  • Input Voltage (recommended):6.5-12v (VIN) / 5v (Micro USB)
  • Input Voltage (limits):6.5-12V
  • Digital I/O Pins:20
  • PWM Channels:7
  • Analog Input Channels:12
  • DC Current per I/O Pin:40 mA
  • DC Current for 3.3V Pin:50 mA
  • Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM:2.5 KB (ATmega32u4)
  • EEPROM:1 KB (ATmega32u4)
  • Clock Speed:16 MHz
  • Compatible with most of Nano shield
  • Size: 45x20x20mm
Shipping List
  • Dreamer Nano V4.0            1 unit
Documents
Documentation and Resources:
