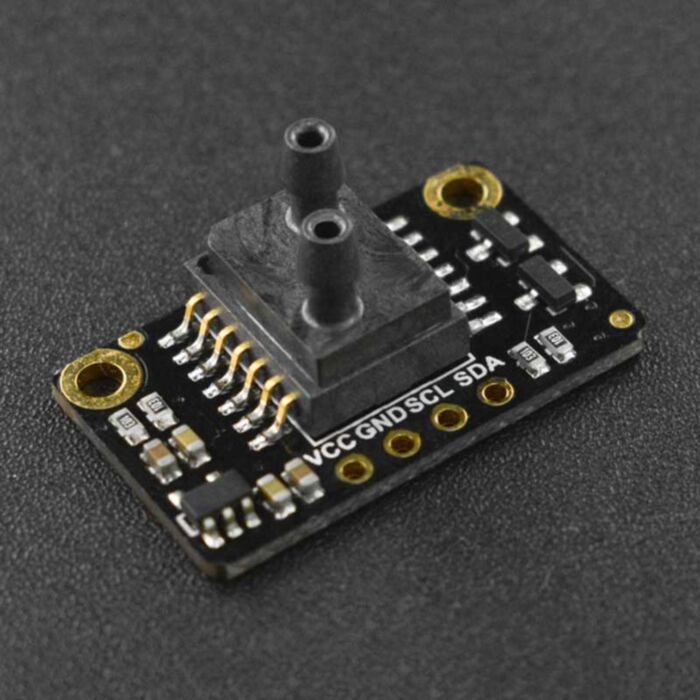

Differential Pressure Sensor (±500pa)

Rating:
100% of 100
SKU: SEN0343 Brand: DFRobot
This high-resolution differential pressure sensor with I2C communication is used to measure the difference in pressure across two points on a device. A high-performance...
$66.30 AUD, inc GST
$60.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 6+ $57.25 (exc GST)
  • 12+ $54.85 (exc GST)

4 from local stock, supplier stock; your order will dispatch . And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This high-resolution differential pressure sensor with I2C communication is used to measure the difference in pressure across two points on a device. A high-performance MEMS pressure chip and a special conditioning chip are encapsulated inside the sensor. It will give you a comparative measurement between two points. Besides, the sensor IC adopts a unique multi-stage temperature-compensation algorithm to reduce the effect of the environment on the sensor output.

Note: In order to ensure the measurement resolution and the sensor life, please use the sensor in the clean air. Do not let water enter the nozzle of the sensor, or it will cause damage to the sensor.

Features

  • Multi-stage temperature-compensation algorithm
  • I2C digital output
  • High resolution

Applications

  • Home medical care equipment

  • Portable medical equipment

  • Medical monitoring

  • Industrial control

  • Central ventilation system

Specifications

  • Operating Voltage: 3.3V~5V
  • Measuring Range: ±500pa(±1.5%FS)
  • Operating Current: <5mA
  • Communication Mode: I2C
  • I2C Address: 0x00
  • Operating Temperature Range: -40°C ~ 85°C
  • Temperature-compensation Range: -5°C ~ 65°C
  • Dimension: 14.5*24mm/0.57*0.94”

Check out the product wiki here
