TF-NOVA Line Laser LiDAR Sensor (14m, Unique Line-Shaped Detection)

Skip to the beginning of the images gallery

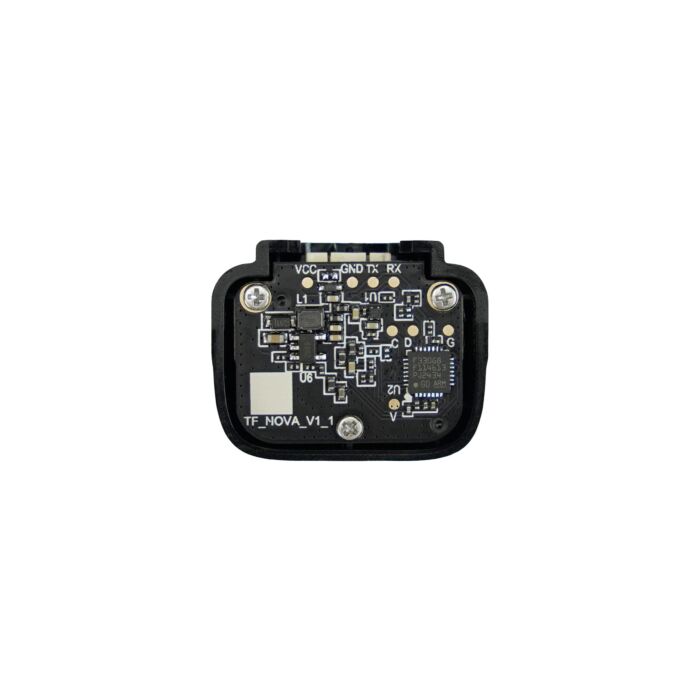

TF-NOVA Line Laser LiDAR Sensor (14m, Unique Line-Shaped Detection)

SKU: SEN0671 Brand: DFRobot

TF-NOVA Line Laser LiDAR offers 14° line-shaped detection area, eliminating blind spots. Achieve reliable 14m outdoor obstacle avoidance for robotics,...

$66.25 AUD, inc GST

$60.23 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 21 and Apr 27

Perceiving the world as a series of disconnected dots, single-point sensors leave vast blind spots and thus often miss critical obstacles. The TF-NOVA Line Laser LiDAR is engineered to eliminate this fundamental flaw. By projecting a wide 14° "curtain" of laser light, it creates a continuous line of detection. At a distance of 1 meter, this line covers an area of 25cm x 1.7cm—perfect for ensuring nothing slips through. This represents a new dimension of perception for automated machines.

TF-NOVA Line Laser LiDAR Overview

Line-Shaped Detection

Features a unique 14° horizontal by 1° vertical Field of View (FoV), creating a "laser line" of detection. It reliably spots thin objects like chair legs, wires, or pallet edges that single-point sensors would easily miss.

Line-Shaped Detection of TF-NOVA Line Laser LiDAR Sensor

Stable Outdoor Detection

Built on Pulse Time-of-Flight (PToF) technology, the TF-NOVA delivers stable and accurate measurements up to 14 meters, even in 100Klux direct sunlight or on dark, low-reflectivity surfaces.

Unfailing Outdoor Performance of TF-NOVA Line Laser LiDAR Sensor

Incredibly Compact & Lightweight

Smaller than an AA battery and weighing under 5g, its tiny footprint allows for seamless integration into space-constrained and weight-sensitive applications like drones, gimbals, and compact robotics.

Incredibly Compact & Lightweight of TF-NOVA Line Laser LiDAR Sensor

Flexible & Easy Integration

Equipped with UART, I2C, and a configurable I/O mode, it connects directly to platforms like Arduino or Raspberry Pi. The I/O mode can trigger a simple high/low signal, dramatically reducing the main controller's data processing workload.

Class 1 Eye-Safe

The 905nm VCSEL light source is classified as EN60825 Class 1, ensuring safety for use in consumer products, educational settings, and public spaces.

High Update Rate for Dynamic Tasks

With a configurable frame rate up to 900Hz, it can track fast-moving objects or provide real-time feedback for high-speed robotic applications.

Specification

Performance Parameter

Measurement Range:
=14m@90%reflectivity, 0Klux; =13m@10%reflectivity, 0Klux
=7m@90%reflectivity, 100Klux; =4m@10%reflectivity, 100Klux

Blind Zone: 0.1m

Accuracy: ±5cm @ 0.1-4m

Precision: <1cm (1s) @ 0.1-4m

Distance Resolution: 1cm

Frame Rate: 1-900Hz (default: 100Hz)

Optical Performance

Light Source: VCSEL

Central Wavelength: 905nm

Laser FOV: 14°×1°

Laser Safety: Class 1 Eye-safe [EN60825]

Mechanical & Electrical

Avg Power Consumption: 500mW

Inrush Current: 850mA

Startup Time: 1s

Operating Voltage: DC 5V ±5%

Operating Temperature: -25? ~ +70?

Storage Temperature: -30? ~ +80?

Dimensions: 26.5×21.05×12.0mm

Weight: 5g

Hardware Interface: 1.25mm-5Pin

Front Window Protection: IP65

Documents

Product wiki

TF-NOVA User Manual

GUI
