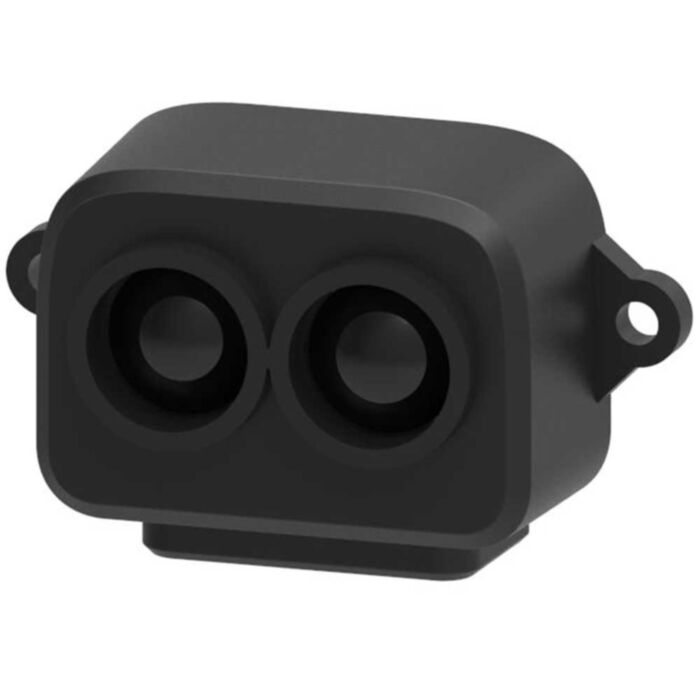

TF-Luna LiDAR Module - Short-Range Distance Sensor

SKU: SS101990656 Brand: Seeed Studio

TF-Luna is a single-point ranging LiDAR, based on the TOF (Time of Flight) principle. It is mainly used for stable, accurate and high-frame-rate range detection.

$46.75 AUD, inc GST

$42.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 15

Quantity Discounts:

10-25 $40.80 (exc GST)
25+ $39.53 (exc GST)

TF-Luna is a single-point ranging LiDAR, based on the TOF (Time of Flight) principle. It is mainly used for stable, accurate and high-frame-rate range detection.

This LiDAR is built with algorithms adapted to suit various application environments and offers excellent distance measurement performances in complex application fields and scenarios.

It also supports two interfaces for communication: UART and I2C and the configurations and parameters on this LiDAR can be adjusted according to your application needs.

Features

Compact Size for easy deployment in LIDAR projects
Low Power Consumption for longer usage periods
Light Weight Design ideal for UAV applications
High Frame Rate Range Detection through high stability and accuracy
In-built Algorithms to suit for various application environments
Adjustable configurations and parameters for complex application scenarios
Easy Firmware Upgradability via the TTL-USB connection with PC

How does this LiDAR work?
TF-Luna is based on TOF, namely, Time of Flight principle. It emits modulation waves of near-infrared rays on a periodic basis, which will be reflected after contact with an object. The LiDAR obtains the time of flight by measuring the round-trip phase difference and then calculates the relative distance between the LiDAR and the detected object.

TF-Luna-LiDAR-Module-phase

Applications

Robot Obstacle Avoidance
UAV Obstacle Avoidance
UAV Altitude Holding
Intrusion Detection
Level Measurement
Smart City
Industrial

Specifications

Operating Range: 0.2m -8m @ 90%reflectivity
Frame Rate: 1-125Hz
Distance Resolution: 1cm
Accuracy: ±6cm@(0.2m-3m) ±2%@(3m-8m)
FOV: 2°
Laser Wavelength: 850nm
Light Sensitivity: 70Klux
Output Data: Single-point, distance value
Communication Interface: UART, I2C
Supply Voltage: 5V±0.1V
Power Consumption: ≤0.35W
Peak current: 150mA
Operating Temperature: -10°C~60°C
Laser Safety Class: Class1(IEC60825)
Dimensions(L*W*H): 35*21.2*12.5mm
Weight: 5g±0.3g

TF-Luna-LiDAR-Module-dimensions

This product is listed in:

Sensors>Distance>Infrared
