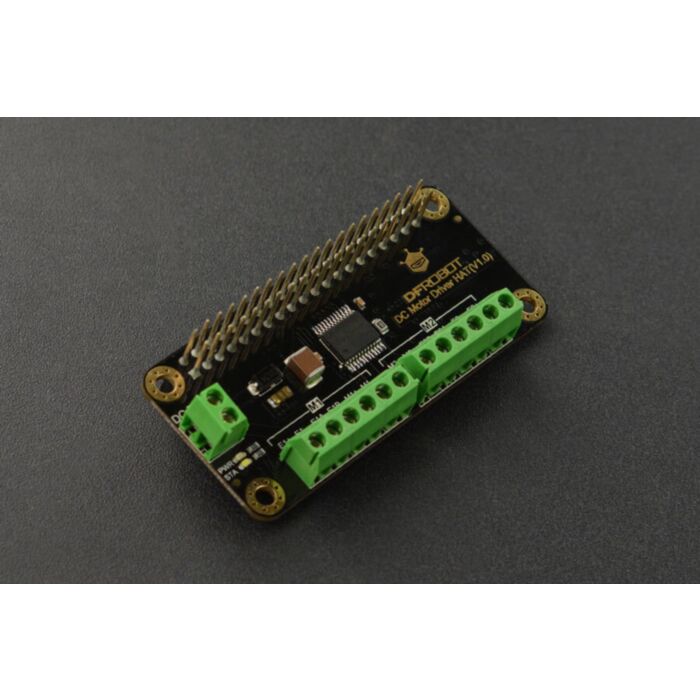

DC Motor Driver HAT(V1.0)

SKU: DFR0592 Brand: DFRobot
This is a Raspberry Pi DC motor driver board with on-board encoder interface, which can drive 2-way DC motor and DC motor with encoder. It communicates with Raspberry...
$24.45 AUD, inc GST
$22.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $21.34 (exc GST)
  • 25+ $20.67 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a Raspberry Pi DC motor driver board with on-board encoder interface, which can drive 2-way DC motor and DC motor with encoder. It communicates with Raspberry Pi via I2C, easy to configure and drive motors. The DC Motor Driver HAT adopts STM32 micro processor to analyze the command sent by the upper host, and then convert into motor drive signal after calculation. Besides that, a high-performance TB6612FNG motor drive chip is integrated on the module. The single channel continuous current is 1.2A and the peak current is up to 2A. The motor driver supports 7~12V wide input voltage. It can be used together with Raspberry Pi to make smart DIY car, balance car, DIY tank, mechanical fish, etc.

Features:

  • Motor Drive
  • I2C Communication
  • Raspberry Pi Shield

Specification

  • Operating Voltage: 7~12V
  • Logical Voltage: 5V
  • Motor Driver Chip: TB6612FNG
  • Communication Interface: I2C
  • Default IIC Address: 0 x10
  • Continuous Drive Current: 1.2A
  • Peak Current: 2A
  • Support 2-way DC Motor/DC Motor with Encoder
  • Dimension: 65*30mm/2.56*1.18”

Documents

Parts List

  • DC Motor Driver HAT(V1.0) x1
