DC-DC Step Down Buck Converter (15~24V to 12V/12A)

SKU: DFR1208 Brand: DFRobot
The 12A DC-DC Buck Converter is an efficient 5-24V to 12V step-down module with over-temperature & short-circuit protection. Ideal for drones, robots &...
$28.30 AUD, inc GST
$25.73 AUD, exc GST

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This DC-DC step-down converter module is designed to efficiently reduce a high input voltage (15-24V) to a stable 12V output, supporting up to 12A of current. The module offers high conversion efficiency (over 95%), with minimal ripple noise (under 50mV), making it suitable for power-sensitive applications. It also includes built-in protection features such as over-temperature protection (up to 125°C) and short circuit protection, ensuring the safe operation of both the module and connected devices.

High Conversion Efficiency

Achieves greater than 95% efficiency with 24V input and 1-12A load, minimizing energy loss and ensuring reliable power conversion for demanding applications.

Over-Temperature and Short Circuit Protection

Features over-temperature protection up to 125°C and output short circuit protection, safeguarding the module and connected devices from damage.

Thermal Management for High-Current Loads

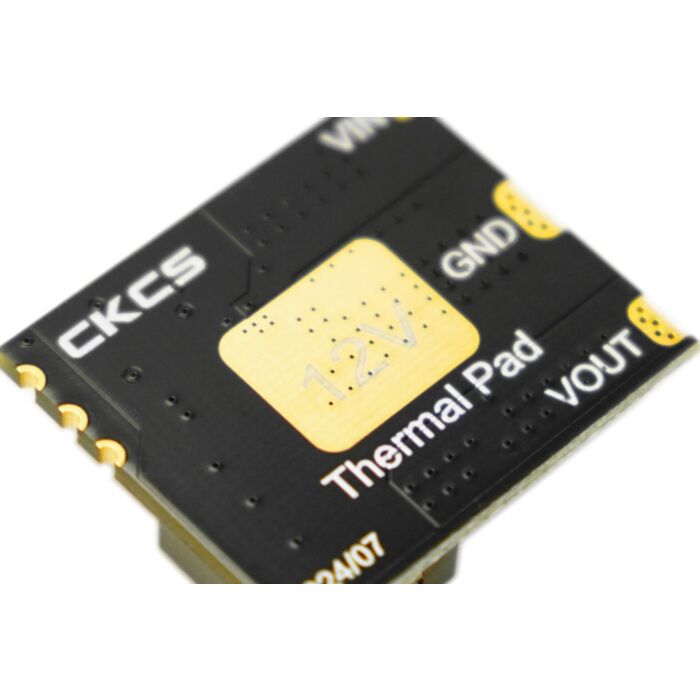

A built-in thermal pad allows for enhanced heat dissipation when soldered to a larger copper area, providing improved performance under heavy load conditions.


The module features three control pins:

Pin and Dimension Diagram of DC-DC step-down converter module

Figure: Pin and Dimension Diagram of DC-DC step-down converter module

  • EN: Floating (open) to enable the output, connected to ground to disable the output. It can be controlled by a microcontroller's IO pin with a 1K resistor in series.
  • AGND: When control is needed from a microcontroller, connect a single ground point to this pad.
  • PGOOD: Outputs a high level (5V) when the output voltage is normal. Outputs a low level (0V) when there is an abnormal output voltage or a short circuit.
  • Conversion Efficiency

    Conversion efficiency (Input 24V, output 12V, with a load ranging from 1 to 12A)

    Figure: Conversion efficiency (Input 24V, output 12V, with a load ranging from 1 to 12A)

    Specification

  • Input Voltage: DC 15~24V
  • Output Voltage: DC 12V ±1%
  • Max Output Current: 12A
  • Output Ripple Noise: <50mV (1~12A load)
  • Conversion Efficiency: >95% (input 24V, load 1-12A)
  • Static Current (EN floating): <3mA
  • Static Current (EN grounded): <3µA
  • Operating Temperature: -25? ~ +70?
  • Output Short Circuit Protection: Yes
  • Over-Temperature Protection: 125°C
  • Dimensions: 30 x 26 x 8mm
