DC-DC Boost Module (5V)

SKU: FIT0471

$6.77 AUD, inc GST
$6.15 AUD, exc GST

More Views

DC-DC Boost Module (5V)
6.77 AUD

SKU: FIT0471

$6.77 AUD, inc GST
$6.15 AUD, exc GST
In stock, with a short lead time. 47 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

Introduction

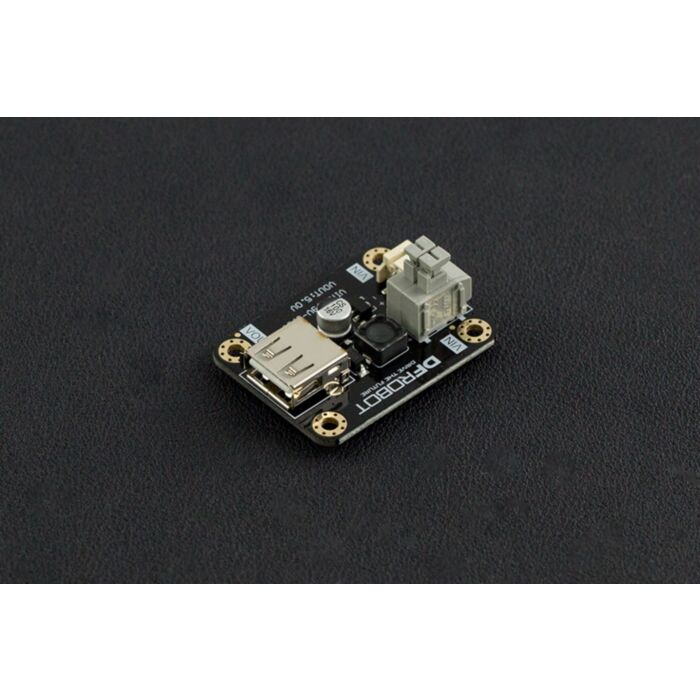

This is a small DC - DC boost module that integrates a PFM DC-DC boost control chip. It can convert a 0.9 ~ 5v power source to standard 5V, making it capable of supplying power to an Arduino microcontroller and other small electronic devices that use a 5v input. The maximum output current is up to 500 ~ 600 mA. There are two power input ports, PH2.0 and KF235-3.81-2P which are compatible with DFRobot's 3.7 V lithium battery.

Note: Please pay attenetion to the battery polarity when connecting the battery.

Specification

  • Input Voltage: 0.9 V to 5 V
  • Output Voltage: 5 V
  • Conversion Efficiency: 85% (Typ.)
  • Duty ratio coefficient: 66% to 78%
  • The input interface: PH2.0; KF235-3.81-2P
  • Output interface: USB
  • Size: 43 * 33 mm/ 1.69 * 1.3 inches
  • Weight: 14g

Documents

Parts List

  • DC-DC Boost Module x1
