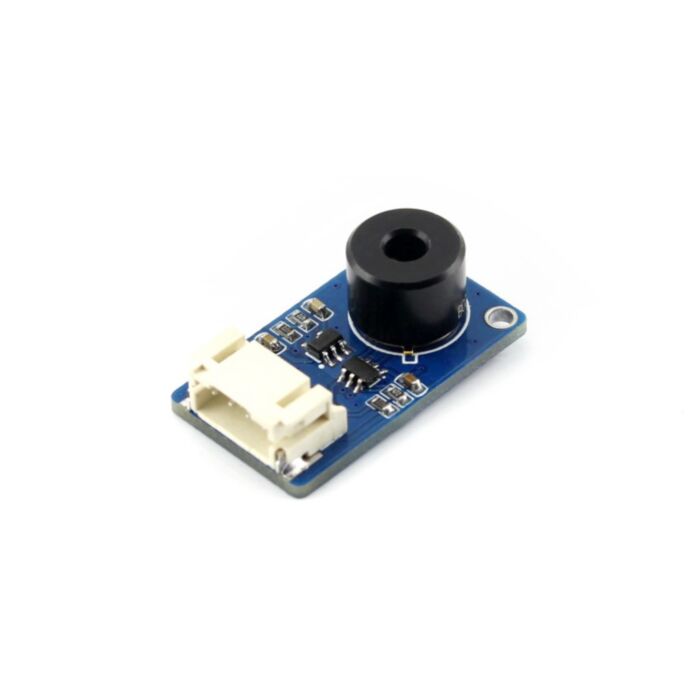

Contact-less Infrared Temperature Sensor

SKU: CE08646 Brand: Waveshare

A contact-less infrared sensor communicating to your dev board through I2C...

$23.50 AUD, inc GST
$21.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 18th of Jul

Quantity Discounts:

  • 10-25 $20.73 (exc GST)
  • 25+ $20.29 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target (measures the average temperature over an area).

Calibrated before delivery, with gradient temperature compensation

Works with 3.3V/5V MCU system directly, thanks to the built-in level translation

Specifications

  • Power: 3.3V ~ 5V
  • Measuring range (area): 40°C ~ 85 °C
  • Measuring range (object): -70°C ~ 380 °C
  • Resolution: 0.02°C
  • Precision: ±0.5°C ( 0~50°C)
  • Field of view (FOV): 35°
  • Dimension: 28mm x 16 mm
  • Mounting holes size: 2.0mm

Applications

  • High-precision contact-less temperature measurement
  • Industrial temperature control
  • Household appliances temperature control

How to Use

In the case of working with a MCU:

  • VCC - 3.3V ~ 5V
  • GND - GND
  • SDA - MCU.I2C data line
  • SCL - MCU.I2C clock line

Dimensions

Infrared Temperature Sensor dimensions

Resources

Wiki : www.waveshare.com/wiki/Infrared_Temperature_Sensor

Shipping List

  1. Infrared Temperature Sensor x 1
  2. PH2.0 4PIN wire x 1
