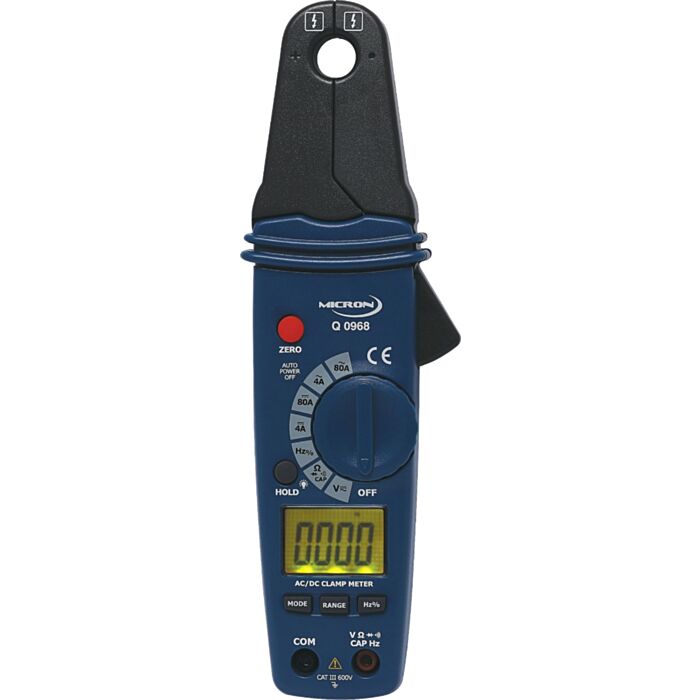

Compact AC/DC Clamp Meter

Features

• Two current ranges 4A, 80A
• 1mA resolution
• Backlit LCD
• One touch zero function
• 23mm jaw opening
• Auto power off
• Data hold function
• Test leads and carry case included
• Battery included
• Cat III 600V

Specifications

• DC Current:
  • - 4.000 A DC ± (2.8% + 10 digits)
  • - 80.0 A DC ± (3% + 8 digits)
• AC Current (50/60Kz):
  • - 4.000 A AC ± (3.0% +10digits)
  • - 80.0A AC ± (3.0% + 8 digits)
• DC Voltage:
  • - 400.0 mV DC ± (1.0% + 15 digits)
  • - 4.000 V DC ± (1.0% + 3 digits)
  • - 40.00 V DC ± (1.5% + 3 digits)
  • - 400.0 V DC ± (1.5% + 3 digits)
  • - 600 V DC ± (2.0% + 3 digits)
• AC Voltage:
  • - 400.0 mV AC ± (1.0% + 30 digits)
  • - 4.000 V AC ± (2.0% + 5 digits)
  • - 40.00 V AC ± (2.0% + 5 digits)
  • - 400.0 V AC ± (2.0% + 5 digits)
  • - 600 V AC ± (2.0% + 5 digits)
• Resistance:
  • - 400.0 O ± (1.0% + 4 digits)
  • - 4.000KO ± (1.5% + 2 digits)
  • - 40.00KO ± (1.5% + 2 digits)
  • - 400.0KO ± (1.5% + 2 digits)
  • - 4.000MO ± (2.5% + 3 digits)
  • - 40.00MO ± (3.5% + 5 digits)
• Capacitance:
  • - 40.00nF ±(5.0% reading + 30digits)
  • - 400.0nF ±(3.0% reading + 5 digits)
  • - 4.000µF ±(3.5% reading + 5 digits)
  • - 40.00µF ±3.5% reading + 5 digits)
  • - 100.0µF ±(5.0% reading + 5 digits)

• Frequency:
  • - 5.000Hz ±(1.5% reading + 5 digits)
  • - 50.00Hz ±(1.2% reading + 2 digits)
  • - 500.0Hz Sensitivity: 10Vrms min. @ 20% to 80% duty cycle
  • - 50.00kHz Sensitivity: 10Vrms min. @ 20% to 80% duty cycle
  • - 500.0kHz Sensitivity: 10Vrms min. @ 20% to 80% duty cycle
  • - 5.000MHz 10Vrms min. @ 20% to 80% duty cycle
  • - 10.00MHz 10Vrms min. @ 20% to 80% duty cycle
• Duty Cycle:
  • 0.5 to 99.0% ±(1.2% reading + 2 digits)
• Pulse width: 100µs - 100ms, Frequency: 5Hz to 150kHz;
• Sensitivity: 10Vrms min.
• Analog Output:
  • (for ACA & DCA range), 10mV/Amp (20KHz at ±3dB)
  • Accuracy: ± ( 4.5% reading + 1mV )
  • Output impedance: approx 3KO
• Physical Specifications:
  • Clamp size Opening: 0.9" (23mm) approx
• Diode Test :Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical.
• Continuity Check: Threshold <150O; Test current< 1mA
• Overrange Indication: “OL” is displayed
• Measurements Rate: 2 per second, nominal
• Input Impedance: 7.8MO (VDC and VAC)
• Display: 4000 counts LCD
• Operating Temperature: -10 to 50 deg C
• Storage Temperature: -30 to 60degC)
• Relative Humidity 90%(0degC to 30degC); 75%(30degC to 40degC); 45%(40degC to 50degC)
• Altitude Operating: 3000m; Storage 10,000m
• Over voltage: Category III 600V
• Battery: 2 x 1.5V “AAA” Batteries
• Auto OFF: approx. 25 minutes
• Dimensions: 200x50x35mm
• Weight: 200g
