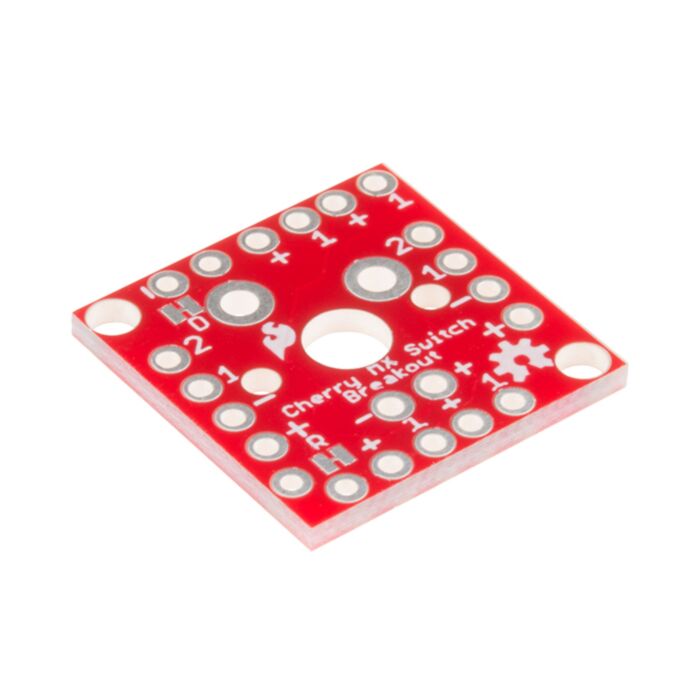

Cherry MX Switch Breakout

Rating:

100% of 100

SKU: BOB-13773 Brand: Sparkfun

Cherry MX Keyswitches are top-of-the-line mechanical keyboard switches. They’re satisfyingly “clicky”, reliable up to tens-of-millions of key presses, and a standard in gaming and programming keyboards across the globe. With the SparkFun Cherry MX Switch Breakout we have made the switches more easily adaptable to breadboard or perfboard-based projects. The Cherry MX Switch Breakout is a perfect prototyping tool for projects ranging from a single-key user-input to fully-custom 101-key keyboards.

$3.50 AUD, inc GST

$3.18 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 22 and Jul 24

Quantity Discounts:

10-25 $3.09 (exc GST)
25+ $3.02 (exc GST)

Recommended Essentials:

Cherry MX Switch

$2.16

Cherry MX Keyswitches are top-of-the-line mechanical keyboard switches. They’re satisfyingly “clicky”, reliable up to tens-of-millions of key presses, and a standard in gaming and programming keyboards across the globe. With the SparkFun Cherry MX Switch Breakout Sparkfun have made the switches more easily adaptable to breadboard or perfboard-based projects. The Cherry MX Switch Breakout is a perfect prototyping tool for projects ranging from a single-key user-input to fully-custom 101-key keyboards.

In addition to breaking out the switch contacts to breadboard-compatible headers, the Cherry MX Switch Breakout also provides access to an optional switch-mounted LED. Plus, the pin break-outs are designed with keyboard matrix-ing in mind, so you can interconnect as many boards as you’d like into a row-column configuration, keeping the I/O-pin requirements as low as possible.

Note: If you are looking for a Cherry MX Switch to use with this breakout, we’ve got you covered! CLICK HERE!

GET STARTED WITH THE CHERRY MX SWITCH GUIDE

Features:

Support for 3mm LED
Footprint for LED current-limiting resistor
Footprint for switch-isolating diode
Chain-able in row/column matrices
Designed to match standard key spacing and keyboard row offsets
