Search results for: 'low dropout regulator'

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

The compact (0.5″ × 0.7″) D24V10F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 1 A.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

The compact (0.5" × 0.7") D24V10F3 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 3.3 V while...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V. The board measures...

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V while allowing a typical continuous output current of up to 9 A. Typical efficiencies of 80% to 95% make this regulator well suited for higher-power applications like powering motors or servos, while high efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps. The regulator’s output voltage setting can also be lowered by adding an external resistor.

The compact (0.4″ × 0.5″) D24V5F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 85% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 5 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The compact (0.4″ × 0.5″) D24V5F3 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 3.3 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 80% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 3.3 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. It's affordable but sounds great! The NXP UDA1334A is...

ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional...

Note 1: Typical continuous output current at 42 V in. Actual achievable continuous output current is a function of input voltage and is limited by thermal...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 5 V. The board measures...

The compact (0.4″ × 0.5″) D24V3F3 switching step-down (or buck) voltage regulator takes an input voltage between 4.3 V and 42 V and efficiently reduces it to 3.3 V while allowing for a maximum output current of 300 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The compact (0.5" × 0.7") D24V10F12 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V while...

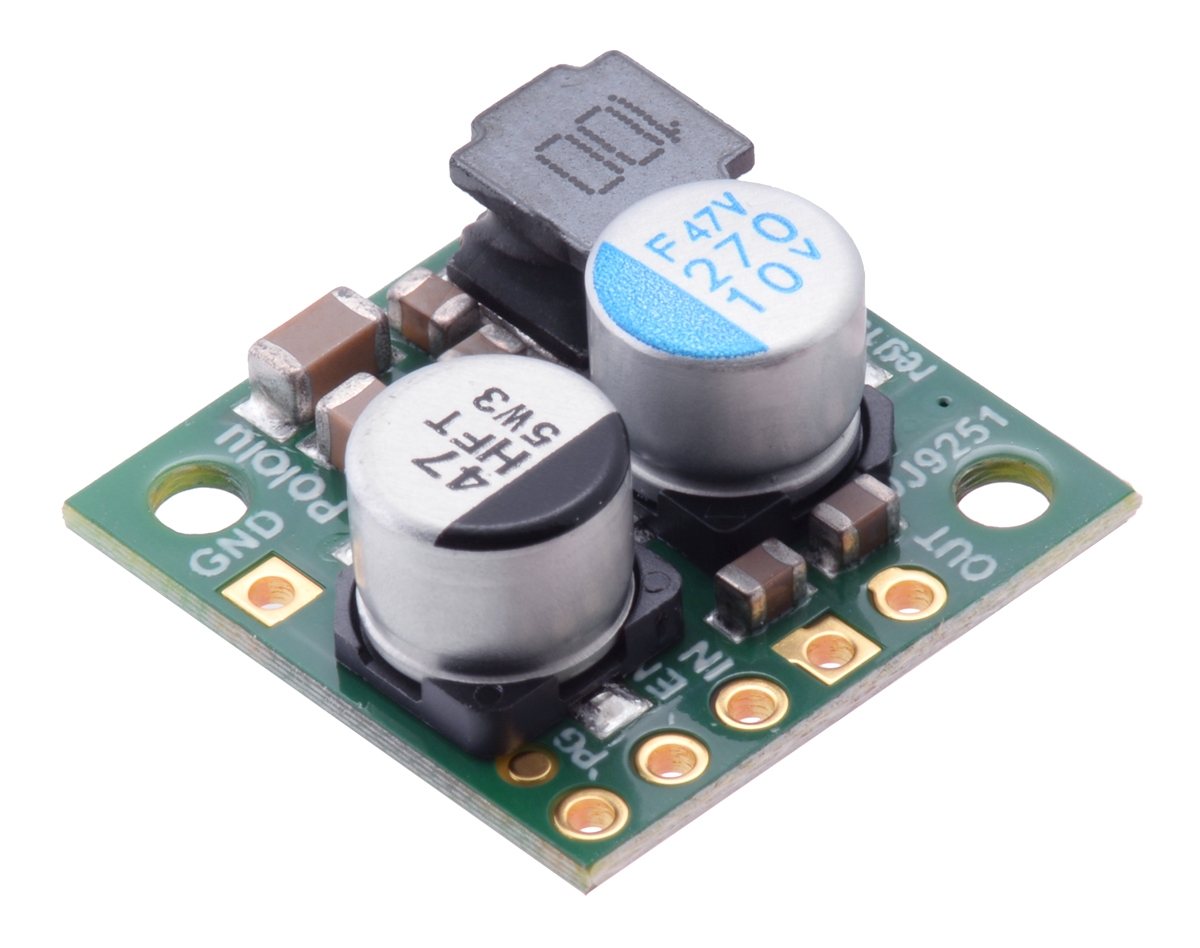

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 5 V. The board measures only 0.7″ × 0.7″, but it allows a typical continuous output current of up to 2.5 A. Typical efficiencies of 85% to 95% make this regulator well suited for powering moderate loads like sensors or small motors. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

This compact (0.45″×0.6″) U1V11A switching step-up (or boost) voltage regulator efficiently boosts input voltages as low as 0.5 V to an adjustable output voltage between 2 V and 5.25 V. Unlike most boost regulators, the U1V11A offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 45 V and efficiently reduces it to 6 V. The board measures...

Say hello to Adafruit's 1.14" 240x135 Color TFT Display w/ MicroSD Card Breakout – we think it's T-F-Terrific! It's the size of your thumbnail, with glorious 240x135 high...

Like Missy Elliot, we like to "put our [Feather] down, flip it and reverse it" and that's exactly what we've done with this new...

This compact (0.4" × 0.5") switching step-down (or buck) voltage regulator takes input voltages between 4 V and 50 V and efficiently reduces them to a...

1 Typical continuous output current at 30 V in and 9 V out. Actual achievable continuous output current is a function of input and output voltages and is...

1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...

1 Typical continuous output current at 30 V in and 3.3 V out. Actual achievable continuous output current is a function of input and output voltages and...

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 36 V and efficiently reduces it to 7.5 V. The board...

The compact (0.4″ × 0.5″) D24V6F12 switching step-down (or buck) voltage regulator takes an input voltage between 15 V and 42 V and efficiently reduces it to 12 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The compact (0.4″ × 0.5″) D24V6F5 switching step-down (or buck) voltage regulator takes an input voltage between 7 V and 42 V and efficiently reduces it to 5 V while allowing for a maximum output current of 600 mA. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

This powerful synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 12 V. The board...

Note 1: Typical continuous output current at 42 V in. Actual achievable continuous output current is a function of input voltage and is limited by thermal...

The compact (0.4″ × 0.5″) D24V5F1 synchronous buck voltage regulator takes input voltages between 3 V and 36 V and efficiently reduces them to 1.8 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 75% and 90%. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information...
