This version of the QRE1113 breakout board features an easy-to-use analog output, which will vary depending on the amount of IR light reflected back to the sensor. This tiny board is perfect for line sensing applications and can be used in both 3.3V and 5V systems.

Line tracking is the most basic function of smart mobile robot. As you can see line tracking robot matches everywhere. We designed this new generation of line tracking sensor to be your robot's powerful copilot all the way. It will guide your robot by telling white and black quickly and correctly, via TTL signal.

The Line Follower sensor is an add-on for your RedBot that gives your robot the ability to detect lines or nearby objects. The sensor works by detecting reflected light coming from its own infrared LED. By measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.

This version of the QRE1113 breakout board features a digital output, using a capacitor discharge circuit to measure the amount of reflection. This tiny board is perfect for line sensing when only digital I/O is available, and can be used in both 3.3V and 5V systems.

Add precise line following to your autonomous buggy builds with the Kitronik Autonomous Robotics Platform Line Follower Board.

The SparkFun Line Follower Array is a long board consisting of eight IR sensors that have been configured to read as digital bits! We have designed the SparkFun Lin Follower Arrays to follow a dark line of about ¾ inch width or smaller (spray paint or electrical tape) on a light background. Each array features visible LEDs that point upward when the board is attached (properly) so you can see what the robot sees, brightness control right on the board, and an I2C interface for reading and power control. Here at SparkFun, the RedBot Shadow Chassis was used as a test platform but really this was designed as an add-on for almost any bot.

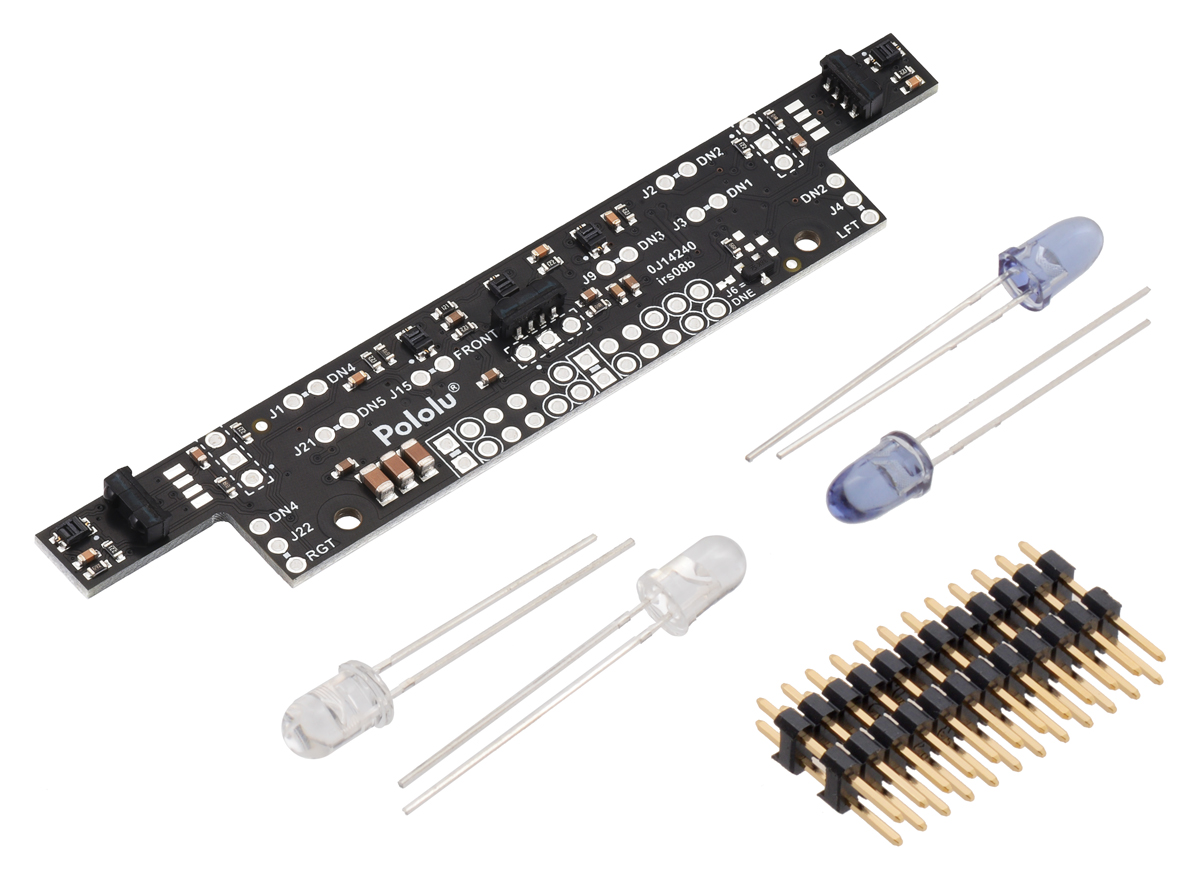

This is the front sensor array of the Zumo 32U4 robot. It is included as part of the Zumo 32U4 Robot Kit and built into the assembled versions of the Zumo 32U4 Robots. It is not intended for use with the Zumo Robot for Arduino or Zumo Shield for Arduino. Additional header pins and infrared LEDs are included.

This is the front sensor array of the Zumo 2040 robot. It is included as part of the Zumo 2040 Robot Kit and built into the assembled versions of the Zumo...

This reflectance sensor module is designed for use with the Zumo shield for Arduino. It has six IR LED/phototransistor pairs that can be used for line following or edge detection; each sensor provides an independent, digital I/O-measurable output. The array draws approximately 40 mA when the emitters are on, and an optional input allows the emitters to be turned off for additional sensing or power-saving options.

Analog sensors Uses PH 2.0 socket Special sensor with Arduino expansion boards

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to...

This reflectance sensor module is designed specifically for use with the Balboa 32U4 balancing robot. It features five IR LED/phototransistor pairs that are great for identifying changes in reflectance on the ground directly underneath the Balboa (like detecting or following a black line on a white background). The sensor array offers dimmable brightness control, and each sensor provides an independent output that can be measured with a digital I/O.
