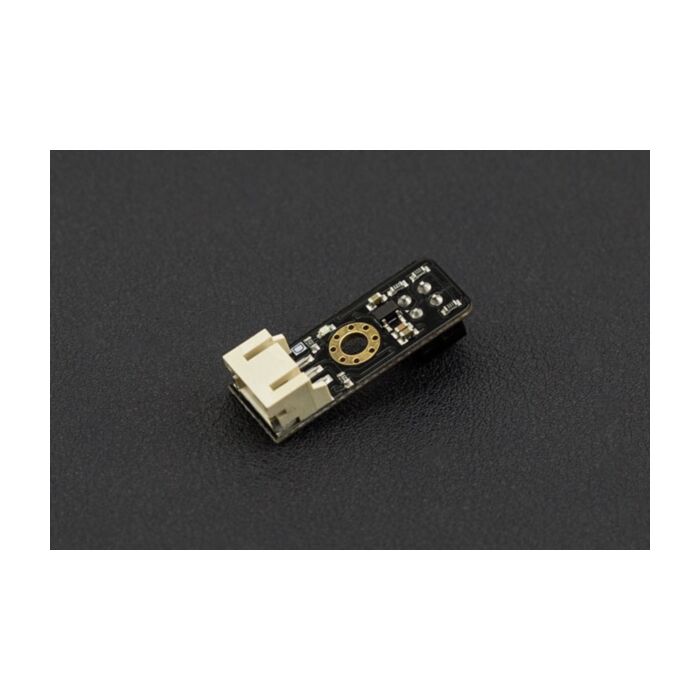

Line Tracking Sensor for Arduino

Rating:
100% of 100
SKU: SEN0017 Brand: DFRobot
Line tracking is the most basic function of smart mobile robot. As you can see line tracking robot matches everywhere. We designed this new generation of line tracking sensor to be your robot's powerful copilot all the way. It will guide your robot by telling white and black quickly and correctly, via TTL signal.
$8.05 AUD, inc GST
$7.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 10-25 $7.10 (exc GST)
  • 25+ $6.95 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a line tracking (following) sensor to guide your robot by telling white from black quickly and accurately.  It is commonly used in arduino robot project, and probably is the best line following sensor in the market.

Line following is the most basic function of smart mobile robot. As you can see line tracking robot one of the easiest ways for a robot to successfully and accurately navigate. We designed this new generation of line tracking sensor to be your robot's powerful copilot all the way. It will guide your robot by telling white from black quickly and accurately, via TTL signal. With a drawed path and good programming can ensure results that are far more consistent than if the robot was simply told where to go without any reference.



To improve its sensitivity we have replaced the old opto interrupt with high quality one on our latest version. Now the sensor is more accurate and It's simplified design make it compatible with most mobile platforms. You can combine several line following sensors with other ranged sensors, making mobile robots complete. With a sensor aiming the floor, not only you can detect lines, but often, floor with low reflection and dark color can be used to distinguish different areas. For example, a kitchen with a dark floor and a living room with a light or white floor, given this information to your robot you can keep it enclosed to a specific area or even let the robot know the area to change it's behavior. We've seen it also for stairs detector, when the sensor is triggered by the lack of reflection when high altitude is detected.


Gravity:Digital Line Tracking(Following) Sensor For Arduino Projects video:



Features

  • Wide voltage range from 3.3V to 5V
  • Standard assembling struct (Times-of-5mm Center distance between two 3mm mounting holes)
  • Icons to simple illustrate sensor function
  • High quality connector
  • Immersion gold surface



Specification

  • Supply Voltage: 3.3V to 5V
  • Detecting Range:
  • Interface:Digital
  • Operating current: 20mA @ 5V
  • Operating temperature range: 0°C ~ + 50°C
  • Output: TTL(Black for LOW output, White for HIGH output)
  • Size:28x10mm (1.1x 0.4 in)
