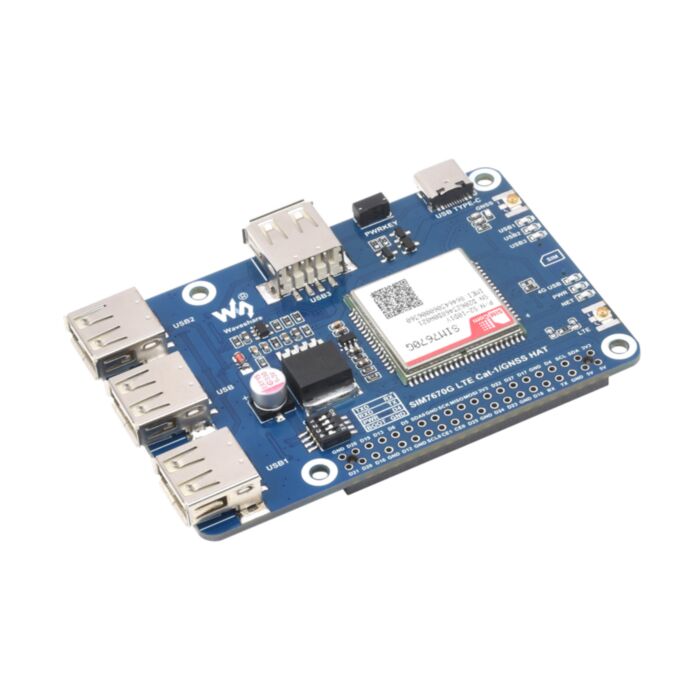

Cat-1/GNSS HAT for Raspberry Pi, Based On SIM7670G module, Global Multi-band LTE 4G Cat-1 support, GNSS positioning, 3x USB 2.0 extended ports
Available with a lead time
Expect dispatch between Dec 02 and Dec 05
Quantity Discounts:
- 6-12 $65.04 (exc GST)
- 12+ $63.69 (exc GST)
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
The SIM7670G LTE Cat-1/GNSS HAT is an LTE Cat-1 module that supports wireless communication via LTE-TDD and LTE-FDD, offering download speeds up to 10Mbps and upload speeds up to 5Mbps. It is compatible with Windows and Linux operating systems and supports multiple network protocols. This module shares the same dimensions as the SIM7000, SIM7070, and A7670E series, and its AT commands are largely compatible with the SIM800 series. This makes it a great choice for IoT applications such as remote information processing, device monitoring, industrial routers, remote diagnostics, and satellite positioning.
Specifications
- Supported protocols: TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
- Positioning Services: GPS, GLONASS, Galileo, BeiDou positioning
- Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
- Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC
- Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
- SIM card slot, supports 1.8V/3V SIM card
- Frequency band: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD:B34, B38, B39, B40, B41
What's On Board
- SIM7670G module
- Raspberry Pi 40PIN GPIO header
- DIP switches for switching to connect the UART and power ON/OFF control of the module to the Raspberry Pi GPIO; switches to BOOT for entering the burning mode
- USB Type-A interface for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports
- 3x USB extended ports
- PWRKEY
- USB Type-C port for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports
- GNSS IPEX 1 connector
- LED indicators
- LTE IPEX 1 connector
- Nano SIM card slot
- 4G UART pads compatible with Raspberry Pi 5 3PIN UART connector
- Reserved test pads for connecting with other host boards
- FE1.1S USB 2.0 HUB USB HUB chip
Pinout
Dimensions
Documents
Shipping List
- 1 x SIM7670G Cat-1/GNSS HAT
- 1 x USB-A to USB-C cable
- 1 x GPS Antenna
- 1 x LTE Antenna
- 1 x 2×20PIN female pinheader
- 1 x USB 3.0 Adapter
- 1 x USB 2.0 Adapter
- 1 x Screws pack
