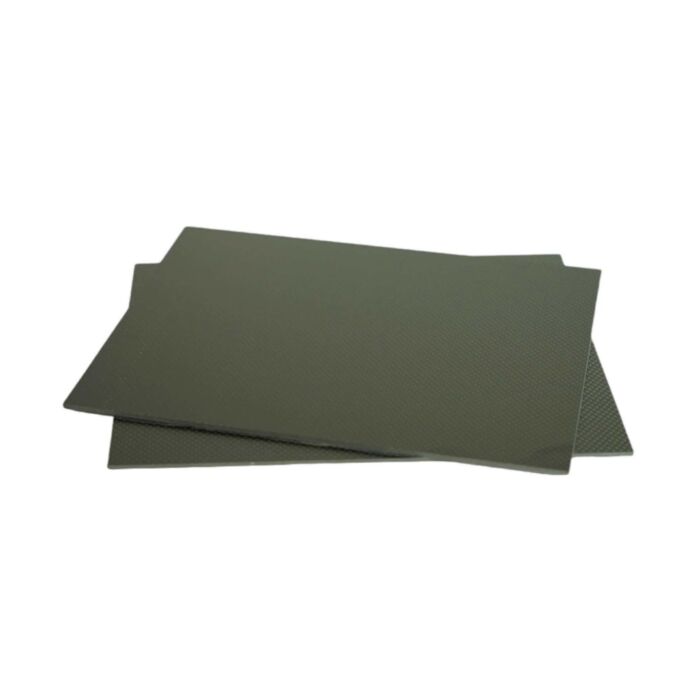

Carbon Fibre Sheet (2mm x 200mm x 250mm)
Thin, rigid woven composite for milling lightweight drone arms, covers and sensor mounts on your desktop CNC.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Featherweight stiffness for parts that need to hold their shape without adding mass. Woven carbon strands set in resin gives a thin plate that beats plastics on rigidity and aluminium on weight.
At 2mm, this is the thickness for parts where every gram counts: small drone frames and arms, camera and sensor mounts, RC chassis covers, enclosure lids and stiffening plates. It cuts through in fewer passes than thicker stock, and the 200 x 250mm sheet leaves room to nest several parts in a single job, or bigger parts.
Carbon fibre is abrasive and can fray or delaminate with the wrong tooling. Makera recommends corn (burr) bits for profiling and publishes starting parameters for its Carvera machines, and the sheet sits comfortably within the Carvera's 360 x 240mm work area. Always run dust extraction and wear a respirator, as carbon fibre dust is harmful if inhaled.
Features
- Parts stay rigid without the weight of metal, which makes it ideal for frames and mounts that must not flex
- Thin 2mm profile machines in fewer passes, saving time and tool wear on an abrasive material
- Generous 200 x 250mm sheet fits multiple parts or a complete small frame in one job
- Clean edges and holes with the right tooling, backed by Makera's published corn bit, drill and chamfer parameters
- Part of a matching range, so you can step up to 3mm or 4mm sheet for load-bearing parts
Specifications
| Property | Specification |
|---|---|
| Material | Carbon fibre composite (woven carbon fabric set in resin) |
| Thickness | 2mm |
| Sheet size | 200 x 250mm |
| Electrical properties | Conductive - do not use as an insulator |
| Recommended tooling | Corn (burr) bits for profiling; drills and chamfer bits for holes and edges |
| Starting parameters (corn bit, per Makera) | 12,000 RPM, 500mm/min feed, 300mm/min plunge, 0.3mm depth of cut |
| Machining | Dry milling, drilling and chamfering; dust extraction required |
