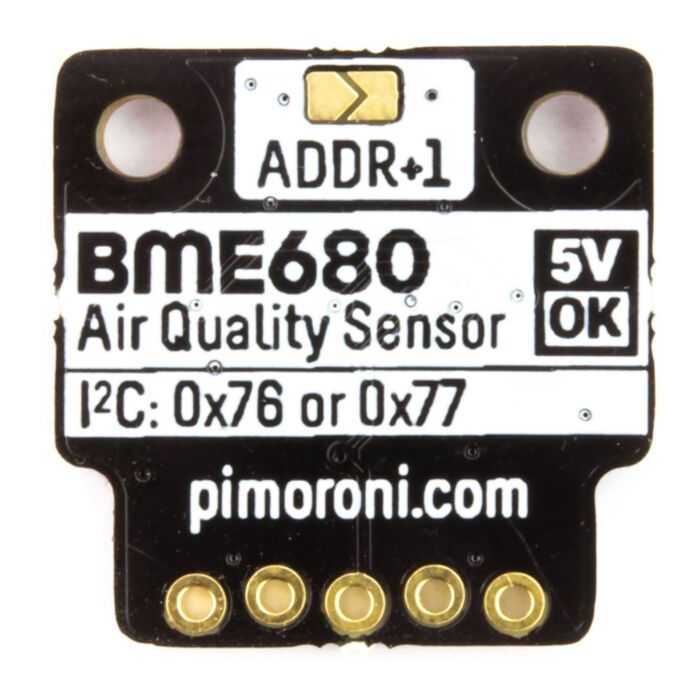

Pimoroni BME680 Breakout - Air Quality, Temperature, Pressure, Humidity Sensor

Rating:

93% of 100

SKU: CE05772 Brand: Pimoroni

The state-of-the-art BME680 breakout lets you measure temperature, pressure, humidity, and indoor air quality, and is Raspberry Pi and Arduino-compatible!

$41.80 AUD, inc GST

$38.00 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and May 01

Quantity Discounts:

10-25 $36.48 (exc GST)
25+ $35.34 (exc GST)

The state-of-the-art BME680 breakout lets you measure temperature, pressure, humidity, and indoor air quality, and is Raspberry Pi and Arduino-compatible!

Use this breakout to monitor every aspect of your indoor environment. Its gas resistance readings will react to changes in volatile organic compounds and can be combined with humidity readings to give a measure of indoor air quality.

Want to get an idea of whether there's adequate ventilation in your bedroom, your workshop, or workplace? Set up a BME680 on a Pi Zero W and have it log sensor readings to a file, or stream live data to a web service like adafruit.io or freeboard.io.

It's also compatible with Pimoroni's fancy new Breakout Garden, where using breakouts is as easy just popping it into one of the six slots and starting to grow your project, create, and code.

Features

Bosch BME680 temperature, pressure, humidity, air quality sensor
I2C interface, with address select via ADDR solder bridge (0x76 or 0x77)
3.3V or 5V compatible
Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9)
Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
Python library
Datasheet
Dimensions: 19x19x2.75mm (LxWxH)

Contains

BME680 breakout
1x5 male header
1x5 female right angle header

Pimoroni has designed this breakout board so that you can solder on the piece of right angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 6, 9). The right angle header also has the advantage of positioning the breakout away from the Pi's CPU so as to minimise radiated heat.

Software

As well as the C library provided by Bosch, Pimoroni has put together a Python library (with a quick and painless one-line-installer) to use with your BME680, making it straightforward to combine it with other Pimoroni boards (why not use a Blinkt! or Unicorn pHAT to visualise air quality in real time?)

Software does not support Raspbian Wheezy.

Notes: Whilst testing, Pimoroni have found that the sensor requires some burn-in time (at least 20 minutes) and that readings may take a couple of minutes to stabilise after beginning measurements

The solder pads (marked ADDR) can be bridged to change the I2C address from the default of 0x76 to 0x77, meaning that you can use up to two sensors on the same Raspberry Pi or Arduino
