BeeLine Chassis Kit V2

SKU: GB-3209-0002-0002 Brand: goBilda
The BeeLine Chassis Kit is a four-motor, 6WD chassis that’s ready for you to customize! Many chassis aim for agility and sacrifice.....
$914.95 AUD, inc GST
$831.77 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 14 and Oct 15

Quantity Discounts:

  • 3+ $819.30 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

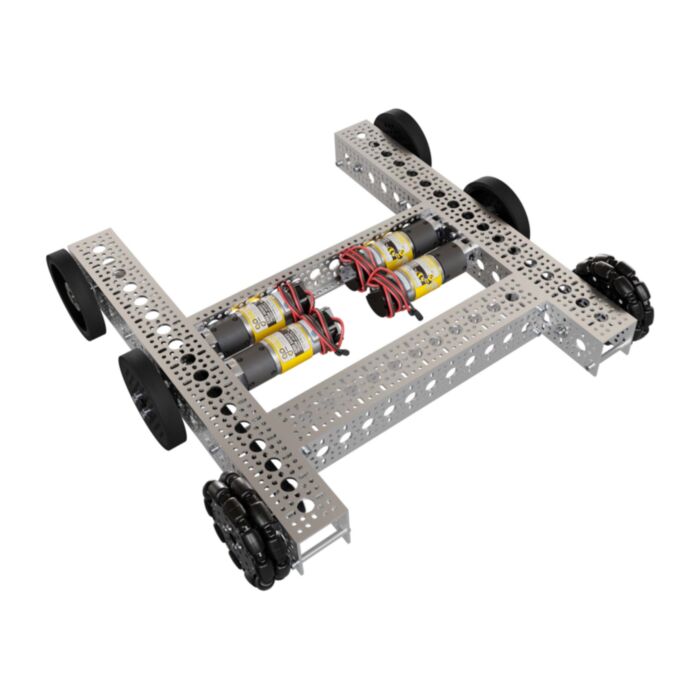

The BeeLine Chassis Kit is a four-motor, 6WD chassis that’s ready for you to customize!

Many chassis aim for agility and sacrifice traction. Others have excellent traction, but lack quick maneuverability. The BeeLine Chassis stands out by providing the best of both worlds! Its two pairs of 96mm Rhino Wheels maximize contact with the ground, which means this chassis won’t get pushed around. The omni wheels at the trailing edge of the chassis—combined with the slightly raised axle locations at each end of the chassis—allow it to rotate at a higher speed than other six-wheel drivetrains.

This style of chassis is simple to operate. The BeeLine has four motors: two on the left and two on the right. Both pairings operate via steel gears that link two motors together. If you’re competing in FTC, you’ll be using a REV hub that’ll require you to plug each motor into a separate channel. However, if you’re free to choose (and have motor controllers at your disposal), a two-channel motor controller and a couple Y-harnesses can get you up-and-running!

There’s no need to fumble through your toolbox to find the right tools for assembly. All the necessary tools are included in the kit to get you up-and-running quickly. The easy-to-follow instructions ensure that anyone, even beginners, can assemble the BeeLine Chassis.

The top of the BeeLine Chassis is primed and ready to be built upon via a multitude of easily accessible holes onto which you can construct intakes, shooting mechanisms, lifts, and arms. The channel spanning from one side to the other can be shifted forward and aft in order to accommodate additional mechanisms.

Kit Contents:

QTYSKUName
21120-0011-0288 x 2

1120 Series U-Channel (11 Hole, 288mm Length)

21120-0017-0432 x 2

1120 Series U-Channel (17 Hole, 432mm Length)

11121-0011-0288 x 1

1121 Series Low-Side U-Channel (11 Hole, 288mm Length)

41201-0043-0002 x 4

1201 Series Quad Block Pattern Mount (43-2)

21205-0001-0005 x 1

1205 Series Dual Block Mount (1-5) - 2 Pack

21309-0016-4008 x 2

1309 Series Sonic Hub (8mm REX Bore)

81501-0006-0430 x 2

1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) - 4 Pack

41522-0010-0040 x 1

1522 Series 8mm ID Spacer (10mm OD, 4mm Length) - 4 Pack

41611-0514-0006 x 2

1611 Series Flanged Ball Bearing (6mm ID x 14mm OD, 5mm Thickness) - 2 Pack

41611-0514-0008 x 2

1611 Series Flanged Ball Bearing (8mm ID x 14mm OD, 5mm Thickness) - 2 Pack

161611-0514-4008 x 8

1611 Series Flanged Ball Bearing (8mm REX ID x 14mm OD, 5mm Thickness) - 2 Pack

41616-0016-0002 x 1

1616 Series Drop-Center Bearing Plate (2mm Drop) - 4 Pack

22106-4008-0800 x 2

2106 Series Stainless Steel REX™ Shaft (8mm Diameter, 80mm Length)

42110-0608-0002 x 4

Shouldered 8mm REX Hub-Shaft (20mm Hub Offset)

62303-4008-0030 x 6

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore, 30 Tooth)

252800-0004-0008 x 1

2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length) - 25 Pack

502800-0004-0010 x 2

2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 11mm Length) - 25 Pack

252800-0004-0012 x 1

2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) - 25 Pack

252800-0004-0016 x 1

2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 16mm Length) - 25 Pack

252801-0004-0008 x 1

2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) - 25 Pack

252802-0004-0030 x 1

2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 30mm Length) - 25 Pack

122807-0811-0500 x 1

8mm ID Stainless Steel Shim (11mm OD, 0.50mm Thickness) - 12 Pack

252812-0004-0007 x 1

2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) - 25 Pack

43412-0009-0420 x 4

3412 Series 5mm HTD Pitch Timing Belt (9mm Width, 420mm Pitch Length, 84 Tooth)

43413-0001-0001 x 2

Acetal Timing Belt Idler (6mm ID x 12mm OD, 12mm Width, 1-1) - 2 Pack

43417-4008-0016 x 4

5mm Pitch HTD Set Screw Pinion Timing Belt Pulley (8mm REX™ Bore, 16 Tooth)

23424-4008-0016 x 2

Dual Belt, 5mm Pitch HTD, Set-Screw Pinion Timing Belt Pulley (8mm REX™ Bore, 16 Tooth)

43604-0014-0096 x 4

3604 Series Omni Wheel (14mm Bore, 96mm Diameter)

43619-0014-0096 x 4

3619 Series Thin Rhino Wheel (14mm Bore, 96mm Diameter, 30A Durometer)

43801-0613-0100 x 4

2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)

15027103001 x 1

Wera Tools 2.5mm Ball End Hex-Plus L-Key

15027104001 x 1Wera Tools 3mm Ball End Hex-Plus L-Key
14206-0070-0001 x 1

7mm Combination Nut Driver

45203-2402-0019 x 4

5203 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 24mm Length 8mm REX™ Shaft, 312 RPM, 3.3 - 5V Encoder)



Downloads

Specs

Weight 4.21g (9.28lbs)
Previous Versions V1
Version 2.0
Payload 20kg (44lbs)
Speed 1.57m/s (3.5mph)
