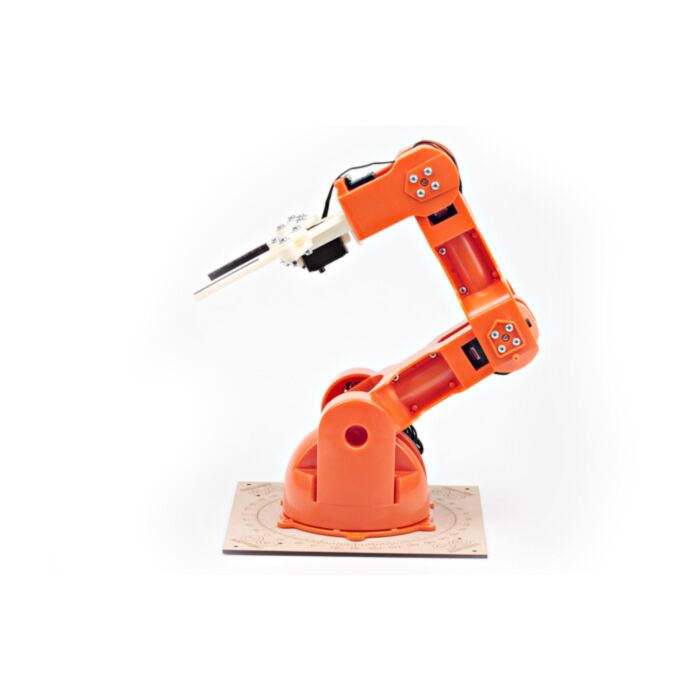

Arduino Tinkerkit Braccio

SKU: CE00334

$430.00 AUD, inc GST
$390.91 AUD, exc GST
Arduino Tinkerkit Braccio

SKU: CE00334

$430.00 AUD, inc GST
$390.91 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 1 units dispatch in 7 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

Venture into the world of robotic arms with the Braccio from Arduino! The arm comes complete with multiple configurations as seen below.

Braccio Setup Examples

The Braccio was made to be a versatile robotic arm that anyone with some Arduino know-how can pick up and use. You can use the jaws on the end of the arm to pick up anything less than 300 grams.

Some great applications of the Braccio that we have seen are:

  • Mounting a camera and use the Braccio to track objects
  • Video conference tracking by holding your phone.
  • Solar panel holding and using the Braccio for Solar tracking

Braccio Various Uses

The Braccio is only sold as part of a kit that requires you to put it together prior to use!

There's a illustrated setup guide in the box, or you can download it here.

After assembly, you can download the Braccio libraries and examples here. There are a couple of alignment steps that will calibrate your Braccio's servo motors. The "TestBraccio90" sketch will position the Braccio in the verticle position shown below. If you run the sketch, and your Braccio doesn't look like the image below, you'll need to re-align the servos.

Braccio Setup Alignment

Download Braccio Quick Start Guide

Power

A regulated 5 V DC @ 5000 mA power supply provided in the box, which is the recommended supply for powering the Braccio. The Braccio is powered via the TinkerKit shield, not via the Arduino power jack.

Physical Characteristics

  • Plastic Parts x 21
  • Screws x 63
  • Flat Washer x 16
  • Hexagon Nut x 7
  • Springs x 2
  • Servo Motors: 2 x SR 311, 4 x SR 431
  • Arduino compatible Shield x 1
  • Power Supply 5V, 5A x 1
  • Phillips Screwdriver x 1
  • Double Hexagon Box Wrench x 1
  • Spiral Cable Protection Wrap x 1

Specifications of the fully assembled Braccio Kit

Braccio Specifications

Braccio Shield: The maximum length and width of the Braccio Shield PCB are 2.7 and 2.1 inches respectively, with the power jack extending beyond the former dimension. Four screw holes allow the board to be attached to a surface or case. Note that the distance between digital pins 7 and 8 is 160 mil (0.16"), not an even multiple of the 100 mil spacing of the other pins.

Servo Technical Specification

Braccio Servo Specifications

This product is listed in:

 >
 >
 >
 >
Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to Use a Logic Level Shifter/Converter
  • So you’ve got your microcontroller/development board ready to go, you’ve got your sensors and external components and you’re ready to build an IoT device to make the world your slave. But hang on a minute, the sensor you have only o...
  • Arduino with LattePanda
  • Ah, Arduino and LattePanda coming together at last. What could be better? Well along with the fact that your LattePanda is a fully fledged Windows 10 computer so you can program any Arduino board you want as normal, one of the best things about Latte...
  • Potentiometers and the Arduino Uno
  • Variable resistors come in all shapes and sizes, and they all do the same basic job. They allow you precisely control voltage/current flow within a circuit. The most common type of variable resistor we see in DIY electronics is the Potentiometer, or ...
  • Relay Operation and the Arduino Uno
  • If you could operate your switch without physically toggling it on and off, you would open yourself up to an entire section of electronics. Relays are one of the best ways of doing this. A relay is essentially just a switch, controlled by an electrom...
  • The Hipster Coaster
  • We wanted to make a interactive display of the fun that can be had with DIY projects to take to Sydney Mini Maker Faire. We decided to do so by utilising the TinkerKit Braccio from Arduino.org, alongside some 3D Printing ingenuity, for an engaging display for all ages. Enter the Hipster Coaster in all its glory.   All the parts were printed seperately on our family of Lulzbot 3D Printers, later stuck together using a mi...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.
  • Cosplay Blaster
  • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)
  • Coffee Grinder With Arduino
  • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...

Product Comments


Customer Reviews

  1. Review by JESUS verified purchaser
    Rating
    100

    Finally had the time to assemble this over the weekend. Works as expected. My only issue is that the servo motors are emitting a high-pitch noise. The noise does NOT happen as soon as you supply the 5V power, but it only happens AFTER moving the arm ( via the Braccio library ), even if it has reached its desired position ( e.g. not moving at all ).

    The servos are powered from the Braccio control board, and I'm supplying power directly to the Braccio control board via the supplied power adaptor.

    Looking at some of the videos on youtube with the Braccio, it seems like this is "normal" for these motors.

    Not sure yet what's causing the noise ( e.g. despite reaching the desired position, it is still working to keep itself in that position .. to counter its own weight.) (Posted on 25/09/2017)
