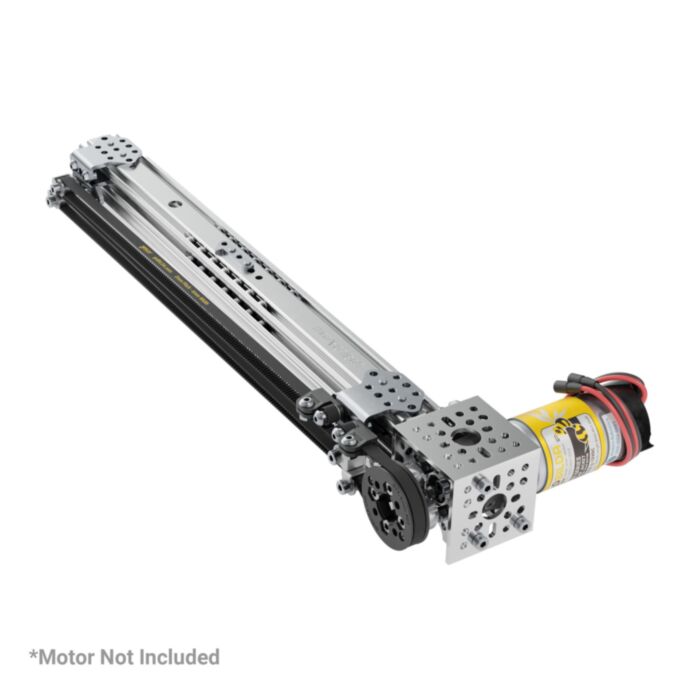

2 Stage Viper-Slide Kit (Belt-Driven, 336mm Slides)

SKU: GB-3210-0003-0002 Brand: goBilda

This 2 Stage Viper-Slide Kit achieves smooth and stable slide motion with its belt-drive basis. Between steel Viper-Slides and easy-to-use.....

$246.91 AUD, inc GST

$224.46 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 03

Quantity Discounts:

5-10 $215.48 (exc GST)
10+ $208.75 (exc GST)

This 2 Stage Viper-Slide Kit achieves smooth and stable slide motion with its belt-drive basis. Between steel Viper-Slides and easy-to-use 2mm pitch GT2 belt components, it has a strong backbone and smooth assembly process with multiple avenues for customization.

Belt Drive

A timing belt adds simplicity and reliability to the drive system. Say goodbye to controlling tension variances with a spring, and hello to quick rigging and excellent consistency from one cycle to the next. Whereas cable has the ability to move about freely when slack is introduced, a belt is limited by its width, and thus easier to tame.

Mounting

This kit is highly mountable to almost anything goBILDA®. Its extension end boasts a grid-pattern of both thru-holes and threaded holes for the secure attachment of components. We’re talking ServoBlocks™, U-Channel, and more!

Unlimited Direction

This kit’s stable linear motion means you can extend it in whatever direction you choose.
It’s capable of a maximum of 488mm (19.2”) of travel (difference between retracted and extended length) while measuring a compact 384mm (15.1”) top-to-bottom retracted length.

Motor Compatibility

Just install a motor of your choice to get the Viper-Slide Kit up and running! The kit’s 1201-0043-0005 Quad Block Pattern Mount and 8mm REX™ Sonic Hub are both super-compatible with whatever goBILDA® 5203 Series Yellow Jacket Planetary Gear Motor you choose.

A 60 Tooth GT2 Pulley drives this kit 120mm per rotation. With a maximum travel distance of 488mm, the kit reaches full extension at ~4.1 rotations of its motor’s shaft.

The fastest motor we recommend is a 13.7:1 (435RPM) gear motor. That ratio can extend all four stages in just under a second! Because of such high potential speed, we recommend using the encoder on the 5203 Series motor to start and stop your kit at appropriate limits.

Don't Forget

Be sure to purchase the 5203 Series Yellow Jacket Planetary Gear Motor of your choice to power this kit. If you are using a REV hub, don't forget to pick up a motor cable adaptor! If you plan to use the motor's encoder (which we highly recommend), you will want an encoder cable.

5203 Series Yellow Jacket Planetary Gear Motors

3801-0613-0100 - 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)

Yellow Jacket to REV Hub Motor Cable Adaptor

3801-0709-0600 - 4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC] Adaptor (600mm Length)

Yellow Jacket to REV Hub Encoder Cable

Already have a Cable-Driven 2 Stage Viper-Slide Kit?

This upgrade pack includes all the 2mm pitch GT2 components to convert your Cable-Driven 2 Stage Viper Slide Kit to one that’s driven via a 2mm pitch GT2 timing belt!

Downloads

Specs

Weight	882g (Motor Not Included)
Spool Rotations to Max Extension	1464° (~4.1 Rotations)

This product is listed in:

goBILDA>MOTION>Linear Slides>Viper-Slide Kits
goBILDA>MOTION>Linear Motion Guides>Linear Slides>Viper-Slide Kits
goBILDA>KITS>FTC Kits>Belt-Driven Viper-Slide Kits
goBILDA>KITS>Linear Motion Kits>Viper-Slide Kits
