AZ-Touch Pi Zero - Wall Mounting Touchscreen Set
In stock, ships same business day if ordered before 2PM
Delivered by Fri, 3rd of May
Quantity Discounts:
- 5-10 $104.68 (exc GST)
- 10+ $101.41 (exc GST)
Recommended Essentials:
After the success of our AZ-Touch wall housing for other microcomputers, Zihatec has released this version for the Raspberry Pi Zero!
An excellent way to add a professional finish to your home automation, metering, monitoring, control and other home IoT projects. Check out the weather station and code lock project examples!
There are many touchscreen add-ons for the Raspberry Pi and Pi Zero, but often without a suitable housing for wall mounting - and usually with larger screen diagonals and therefore not in the compact size of a light switch or thermostat.
This makes the AZ-Touch Pi Zero particularly suitable for small applications in the field of home automation, metering, monitoring, control and other typical IoT applications.
Note: Does not include a Raspberry Pi Zero!
Features
Touchscreen
The kit comes with a 2.8" touchscreen with integrated ILI9341 display controller with communication via SPI. The touch controller is an XPT2046 with resistive touch.
Compatibility
The AZ-Touch Pi0 can be used together with:
- Raspberry Pi Zero
- Raspberry Pi Zero W / WH
Vertical and Horizontal Mounting
Depending on your project and software you can mount the enclosure vertically or horizontally on the wall or in front of a flush wall mount box.
Easy Installation
A removable terminal block makes installation even easier. The PCBs are mounted on the enclosure allowing rapid substitution of devices when required and facilitating easy assembling/disassembling of the enclosure.
Power Supply
The AZ-Touch PCB comes with an integrated switching regulator for input voltages from 9-35V DC. You can connect a power supply via the terminal or an optional DC socket (which works well with our 12V power supply )
Acoustics
The integrated piezo buzzer (resonance frequency 4kHz) can be used to generate acoustic feedback, acknowledge tones or play melodies.
Breadboard
A small breadboard area on top of the PCB can be used to add your own components. 4 poles of the terminal are connected together with a number of GPIO pins, with voltages available beside the breadboard.
Example Projects

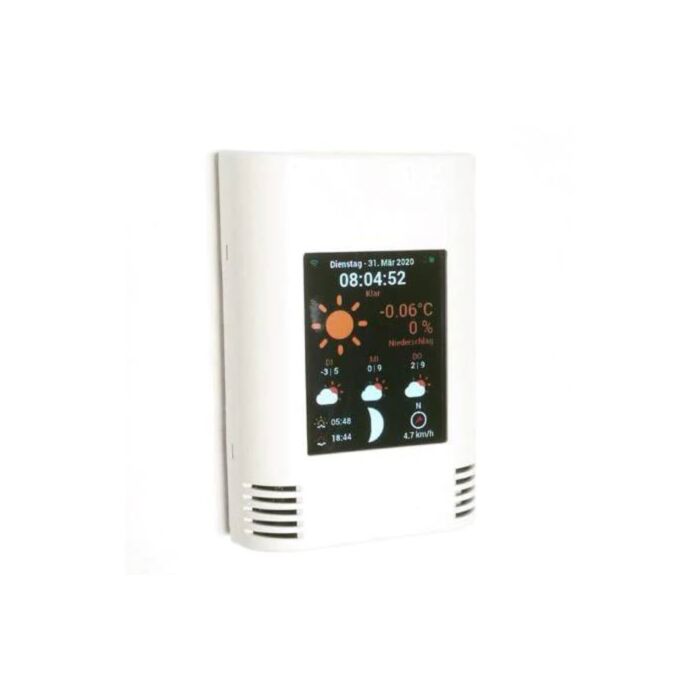

DarkSky based weather forecast. This example is using Python 3 and Pygame for the graphic output. The screen output is redirected to the TFT by a modified overlay rpi-display: https://github.com/HWHardsoft/AZ-Touch-Pi0-Weather
Code lock/keypad and some other demo programs in C for direct touch and tft access: https://github.com/HWHardsoft/AZ-Touch-Pi0-Codelock
