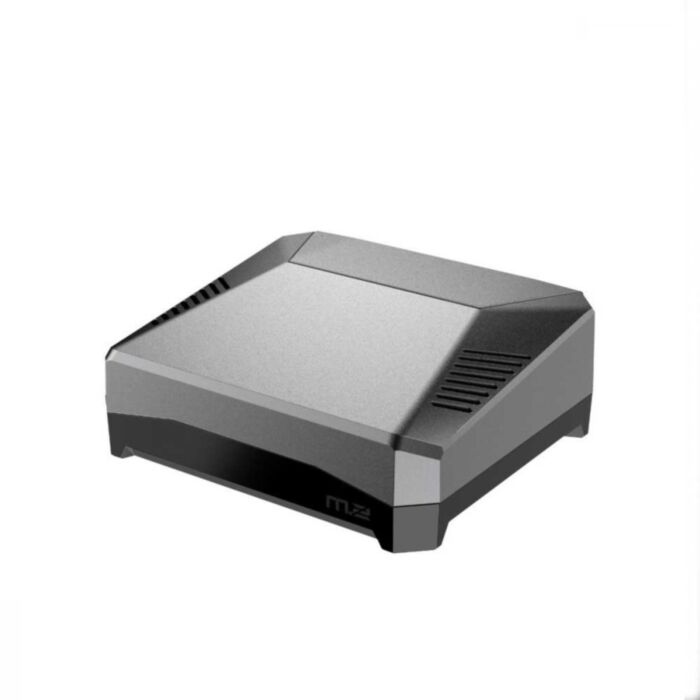

Argon ONE M.2 Case

Rating:
92% of 100
SKU: CE07434 Brand: Argon40 Guides (3)
The NEW Argon ONE case ups the ante with extended support for M.2 SATA SSD's whilst keeping all the things you loved. Push the limits and realize your Pi's true potential. Did we mention it now has full-sized HDMI connectors?
$81.70 AUD, inc GST
$74.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 4th of Mar

Quantity Discounts:

  • 6-12 $71.30 (exc GST)
  • 12+ $69.07 (exc GST)
- +

18 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Note: If silent operation is important for your RPi then disable the fan. This case has excellent passive cooling (possibly the best). Otherwise, configure the fan to only turn on at 75-80ºC to avoid unnecessary usage/wear. Settings below this may lead to the fan making noises as it wears faster over time.

The Argon ONE M.2 Case ups the ante by providing two full-sized HDMI ports, Power Management Modes that allow for automatic booting, Built-in IR support (NEC Standard) with streamlined options for configuration and Integrated M.2 SATA SSD support through the USB 3 Ports of the Raspberry Pi 4.

We recommend using Raspbian OS for full support of features. As with all Raspberry Pi hardware, third-party operating systems may not fully support all the features of this case or the Raspberry Pi itself.

If you're looking to use this case with LibreElec consider a pre-flashed card or check out the installation instructions(download in the guide).

Argon ONE M.2 Case extended support for M.2 SATA SSDs allows you to maximize the true potential speeds of your Raspberry Pi 4. You will now be able to boot via an M.2 SATA SSD for faster boot times and larger storage capacity compared to the traditional microSD Card.

Argon ONE M.2 is UASP Supported for the Raspberry Pi 4 which means you can maximize the transfer speeds of your M.2 SATA Drive.

Argon ONE M.2 is compatible for use with the Argon IR Remote for Argon ONE V2 and M.2.

Already got an Argon ONE case?  You can upgrade it into an M.2 case with the Argon ONE M.2 Expansion Board.

The Argon ONE M.2 case supports Key-B and Key B&M drives so it only works with SATA M.2 SSDs like the ones we stock. NVME Drives are keyed differently to show that they require a PCIe interface, so they won't work with this case!

It should also be noted that you shouldn't use an M.2 SSD with a higher power rating than around 5.5W.

If you are new to installing M.2 drives check the SSD looks like this when fitted.

Features

  • M.2 SATA SSD Compatibility | Accepts any size of M.2 SATA SSD with Key-B or Key-B&M
  • UASP Supported for Raspberry Pi 4 | Maximizes the high speed data transfers for Raspberry Pi 4
  • Two Full-Sized HDMI | Improves the dual-monitor support of the Raspberry Pi 4 for its video input
  • Power Management Modes | Offers 2 power management options with automatic booting or “Always ON Mode”
  • Built-in IR Support | Programmable IR support to the Raspberry Pi with streamlined options. NEC Standard. Works out of the box with the Argon ONE Remote.
  • Active Cooling | Software Programmable 30mm FAN via the Argon ONE software
  • Passive Cooling | Aluminum alloy top case acts as a giant heatsink connected to the CPU of the Raspberry Pi 4
  • Cable Management | Repositioned all ports to the back of the Raspberry Pi 4 to highlight its sleek and modern design.

argon40-m.2-case-desc-img-2

argon40-m.2-case-desc-img-1

Documentation

Instruction Manual
