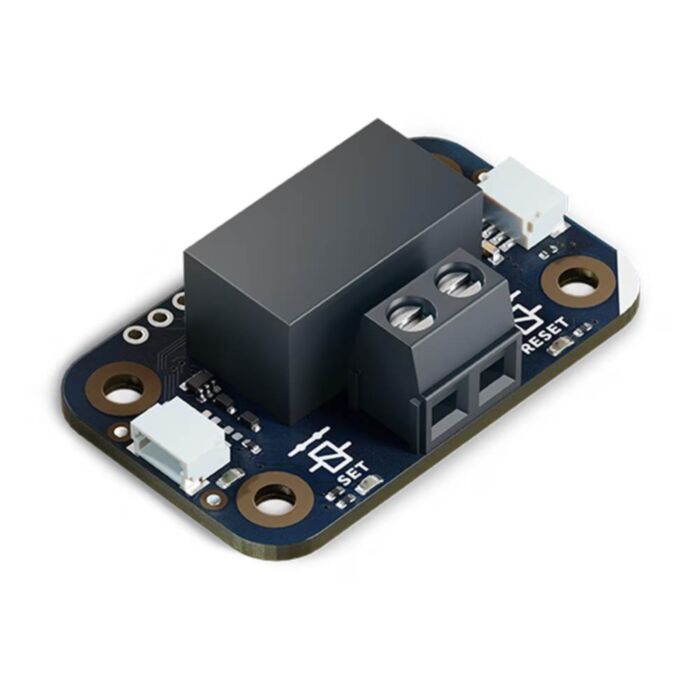

Modulino Latch Relay

SKU: ABX00138 Brand: Arduino

Control high-power devices or circuits with a single digital connection.

$16.75 AUD, inc GST

$15.23 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 20 and Feb 24

Ideal for automation and energy-conscious designs, this ready-to-use node connects in seconds, plays nicely with Arduino tools, and daisy-chains with other Modulino parts for rapid prototyping without rewiring.

Compatibility is straightforward on a 3.3 V Qwiic I2C bus. You can place several nodes on one connector and assign each a unique address using the Modulino library and its AddressChanger example.

Technical Specifications

Board name	Modulino Latch Relay
SKU	ABX00138
Featured component	SY32A-S-105D1M1 (STM32C011 for I2C communication)
Bus	I2C via Qwiic
I2C address	0x04, adjustable via software
Supply voltage	3.3 V (from Qwiic connector)
Logic level on pins	3.3 V
Dimensions	41 mm x 25.36 mm
Weight	4.4 g
Included accessory	Qwiic cable, 5 cm

Additional Resources

Schematics
Datasheet

What’s Included

Modulino Latch Relay board
Qwiic cable, 5 cm
