Arducam 16MP Autofocus Quad-Camera Kit for Raspberry Pi (IMX519 Synchronized Raspberry Pi Camera)
SKU: AC-B0388 Brand: Arducam

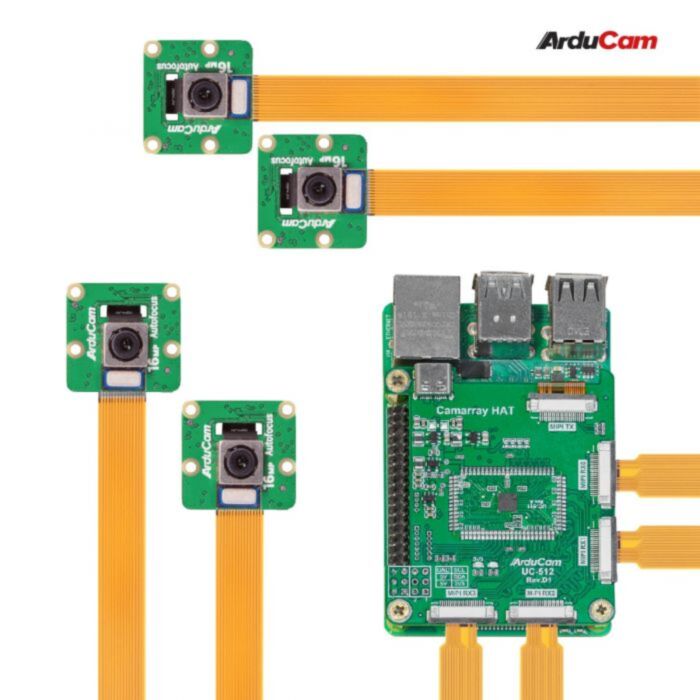

This Arducam quadrascopic camera bundle incorporates four 16MP IMX519 autofocus cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT.
$434.95 AUD, inc GST
$395.41 AUD, exc GST
Available with a lead time
Expect dispatch between Apr 14 and Apr 17
Quantity Discounts:
- 3+ $379.59 (exc GST)
- 5+ $367.73 (exc GST)
This Arducam quadrascopic camera bundle incorporates four 16MP IMX519 autofocus cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT.
As the upgraded version of Arducam Synched Stereo Camera HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi, Jetson Nano, and Jetson Xavier NX.
Specifications
| Supported Platform | Raspberry Pi and NVIDIA Jetson Nano/Xavier NX |
|---|---|
| Output/CSI-2 Speed | x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane |
| Output Format | RAW10 |
| Number of effective pixels | 4656(H) × 3496(V) pixels |
| ISP Support | Not Support on NVIDIA Jetson/ Supported on Raspberry Pi |
| External Trigger | Not Support |
| Aggregate mode | 1/4 Spelling Combine |
| Frame Rate | 4656×3496@9fps, 3840×2160@18fps, 2328×1748@30fps, 1920×1080@60fps, 1280×720@80fps |
| Image Sensor | IMX519 |
| Active Array Size | 4656 × 3496 |
| Optical Format | 1/2.53'' |
| Camera Interface | 2-lane MIPI CSI-2 |
| IR Sensitive | Integral IR-cut filter, Visible Light Only |
| Camera Board Size | 24mm x 25mm |
| Camarray Hat Size | 65mm x 56mm |
| Field of View | 66°(H)x49.5°(V) |
| Focal Length | 4.28mm |
| Focus Type | Autofocus |
| Focus Distance | 10cm~infinity |
Notes
1. The four-channel camera adopts the 2×2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.
2. The resolution of the synthesized image remains unchanged, but the frame rate is halved. This Kit Combines four cameras into one frame, each camera with a resolution of 2328(H)x1748(V).
3. If any camera fails, the composite image can still be output, with the corresponding area of the failed camera being black.
4. Official Commands and ISP are supported.
5. The four-channel camera is a customized model, requiring HAT to provide a clock. It cannot be removed and is directly connected to the Raspberry Pi.
6. The driver of the kit is mainly developed based on the Raspberry Pi/ Nvidia Jeston official board, and there is no guarantee that the third-party board can be used (Due to the different allocation of hardware resources, it may not be compatible)
7. This camera kit supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact [email protected] for support.
Packing List 4 ×16MP Camera Module 1 ×UC-512 Camarray HAT 5 ×30cm 22-22pin Camera Cable 1 ×30cm 15-22pin Camera Cable 1 ×7cm 15-22pin Camera Cable 1 ×Screw Pack
|
|
|---|
Packing List
- 4 ×16MP Camera Module
- 1 ×UC-512 Camarray HAT
- 5 ×30cm 22-22pin Camera Cable
- 1 ×30cm 15-22pin Camera Cable
- 1 ×7cm 15-22pin Camera Cable
- 1 ×Screw Pack
Documentation
- 16MP Synchronized Quad-Camera Kit Getting Started
- Depth Mapping on Arducam Stereo Camera HAT with OpenCV
- 16MP Synchronized Quad-Camera Kit User Guide
CamArray HAT Firmware Note on NVIDIA Jetson
