Anti-Static ESD Rework Mat with Grounding Clip - A4 Size - 20cm x 30cm

SKU: ADA4405 Brand: Adafruit

This anti-static work mat is great for electronic work and repair, especially delicate or ESD sensitive work. It's 2mm thick and has a very high-resistance covering...

$22.40 AUD, inc GST

$20.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $19.75 (exc GST)
25+ $19.35 (exc GST)

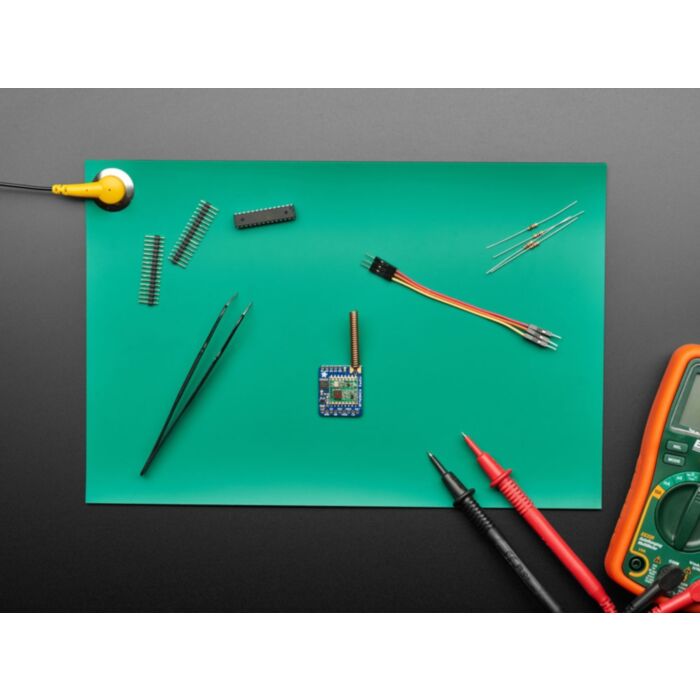

This anti-static work mat is great for electronic work and repair, especially delicate or ESD sensitive work. It's 2mm thick and has a very high-resistance covering, like 10's of Megaohms. There's a clip attached that you need to connect to an earth ground in order to ground the mat. Usually, folks connect it to a known-grounded metal chassis.

While this mat is somewhat heat-resistant it is not as resistant as Adafruit's silicone mats, so it can take some abuse, but Adafruit don't recommend hot-airing without a PCB holder. It's resistant to corrosion, glues, and other adhesives, and it can be cleaned with some water - don't scrub too hard or you can remove the anti-stat coating.

If you want to test the coating, you will not be able to use a multimeter in resistance mode, they're not sensitive enough! Instead, connect your multimeter, in microAmpere mode, in-line with a ~12V power supply. You should see a few microAmps of current pass through the mat.

This mat is 30 cm wide, 20 cm tall and 2mm thick and comes with a grounding clip installed. Your order comes with one mat.

Solder, soldering iron, and other components are not included.
