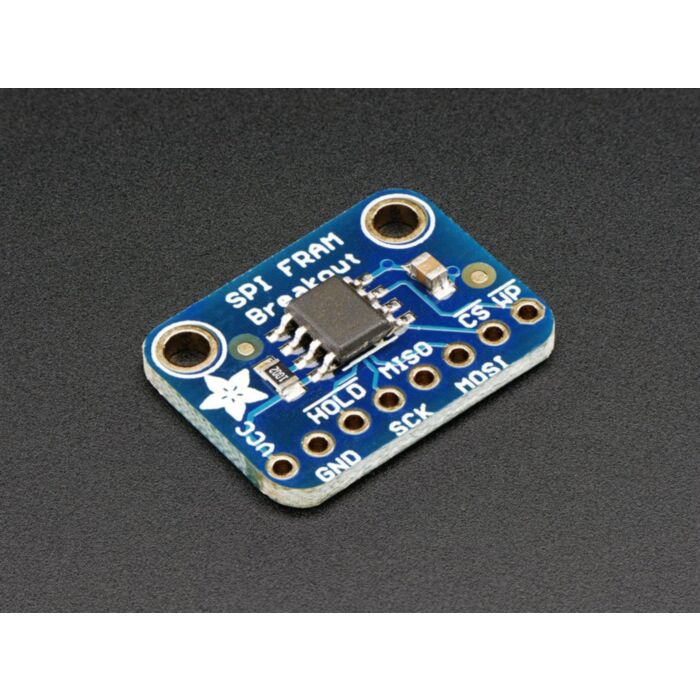

Adafruit SPI Non-Volatile FRAM Breakout - 64Kbit / 8KByte

Rating:

100% of 100

SKU: ADA1897 Brand: Adafruit

FRAM, or Ferroelectric Ram, is the coolest new data storage method that all the fashion magazines are talking about. Oh wait, no that's quilted handbags. But FRAM...

$11.90 AUD, inc GST

$10.82 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 07

Quantity Discounts:

10-25 $10.38 (exc GST)
25+ $10.06 (exc GST)

FRAM, or Ferroelectric Ram, is the coolest new data storage method that all the fashion magazines are talking about. Oh wait, no that's quilted handbags. But FRAM is pretty damn cool too! It's similar to Dynamic random-access memory, only with a ferroelectric layer instead of a dielectric layer. This gives it stable handling (the bytes you write are non-volatile) with dynamic responsiveness (you can write them very fast!)

Now, with Adafruit's SPI FRAM breakout board you can add some FRAM storage to your next DIY project. FRAM allows for a lower power usage and a faster write performance. It's excellent for low-power or inconsistent-power datalogging or data buffering where you want to stream data fast while also keeping the data when there's no power. Unlike Flash or EEPROM there's no pages to worry about. Each byte can be read/written 10,000,000,000,000 times so you don't have to worry too much about wear leveling.

This particular FRAM chip has 64 Kbits (8 KBytes) of storage, interfaces using SPI, and can run at up to 20MHz SPI clock rates. Each byte can be read and written instantaneously (like SRAM) but will keep the memory for 95 years at room temperature.

they picked up the largest chip that has SPI and is also 5V compliant. You can use this chip with either 3V or 5V power and logic. It comes in a breadboard-friendly breakout and a spare stick of 0.1" male header for soldering on.

They also have an I2C FRAM breakout board - which is large in size but slower (1MHz max I2C clock rate)

Technical Details

Dimensions: 15.5mm x 20mm x 2mm / 0.6" x 0.8" x 0.1"
Mounting Holes Spacing: 14mm / 0.6"
Weight: 1.2g
Datasheets, PCB CAD files, Fritzing object, etc are available in the tutorial
