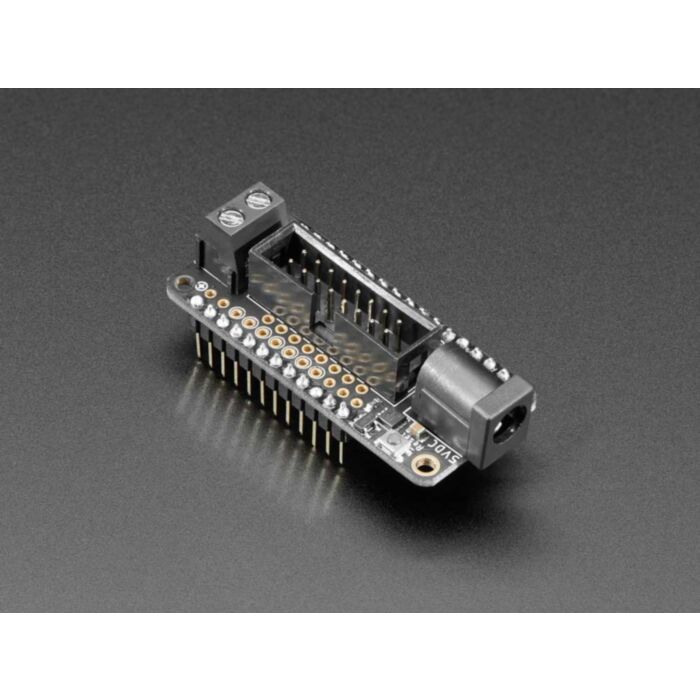

Adafruit RGB Matrix FeatherWing Kit - For nRF52840 Feathers
Available with a lead time
Expect dispatch between May 13 and May 15
Quantity Discounts:
- 10-25 $14.09 (exc GST)
- 25+ $13.65 (exc GST)
Ahoy! It's time to create a dazzling light up project with Adafruit's new RGB Matrix FeatherWing for nRF52840. Now you can quickly and easily create projects featuring your favorite 16 or 32-pixel tall matrix boards. Using Adafruit's RGB Matrix library is easy and works wonderfully with Adafruit's nRF52840 based Feathers.
Please note: This 'Wing is only tested/designed to work with the nRF52840 Feathers (Express and Sense). It's not for use with any other Feathers (unless they happen to coincidentally have matching pinouts!) If you have a SAMD21/SAMD51 (M0 or M4) Feather, Adafruit have a Wing with proper wiring for those Feathers here!
This wing can be assembled in one of two ways. You can either solder in a 2x8 IDC shrouded header on the top, then plug in the IDC cable that came with your matrix. This makes it easy to stack on top of your Feather. Or, you can solder in the 2x10 socket header on the bottom of the Wing, and then stack your Feather on top. That way you can plug it directly into the back of the matrix *mind blown*
This FeatherWing will work great with any of Adafruit 16x32, 32x32 or 64x32 RGB matrices, and is definitely the easiest way to glow and go.
Either way you decide to go, you can plug a 5V DC power pack into the 2.1mm DC jack. That 5V is polarity protected and then output on the other side to a 5.08mm terminal block. An onboard regulator will provide 3.3V power to your Feather so you don't need a separate USB or battery, this makes for a very compact build!
Each order comes with one FeatherWing PCB with surface mount parts attached, a 2x8 IDC header, a 2x10 female socket, 2.1mm DC jack, 5.08mm terminal block, and some male header. You may also want some Feather stacking headers or female headers depending on how you plan to attach/stack your Feather.
