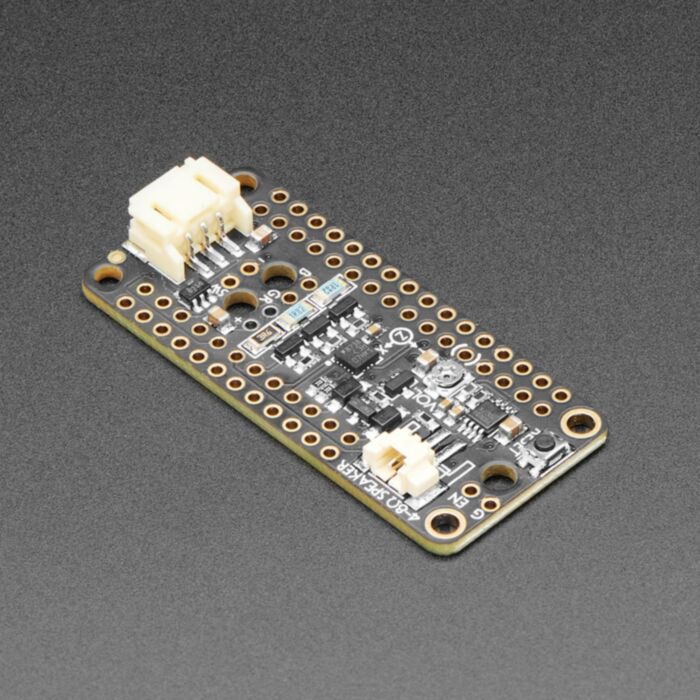

Adafruit Prop-Maker FeatherWing

SKU: ADA3988 Brand: Adafruit

The Adafruit Feather series gives you lots of options for a small, portable, rechargeable microcontroller board. Perfect for fitting into your next prop build! This...

$19.90 AUD, inc GST

$18.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $17.55 (exc GST)
25+ $17.18 (exc GST)

The Adafruit Feather series gives you lots of options for a small, portable, rechargeable microcontroller board. Perfect for fitting into your next prop build! This FeatherWing will unlock the prop-maker inside all of us, with tons of stuff packed in to make sabers & swords, props, toys, cosplay pieces, and more.

Adafruit looked at hundreds of prop builds, and thought about what would make for a great low-cost (but well-designed) add-on for Adafruit's Feather boards. Here's what Adafruit came up with:

Snap-in NeoPixel port - With a 3-pin JST connector, you can plug in one of Adafruit's JST-wired NeoPixel strips directly, or use a 3-pin JST connector to wire up your favorite shape of addressable NeoPixel LEDs. This port provides high current drive from either the Feather Lipoly or USB port, whichever is higher. A level shifter gives you a clean voltage signal to reduce glitchiness no matter what chip you're using
3W RGB LED drivers - 3 high current MOSFETs will let you connect a 3W RGB LED for powerful eye-blasting glory. For most Feathers, the 3 pins are PWM capable so you can generate any color you like. Available as pin breakouts plus strain-relief holes
Triple-Axis Accelerometer with Tap Detection - The LIS3DH is Adafruit's favorite accelerometer, you can use this for detection motion, tilt or taps. Here's an example of a light saber that makes sounds when swung or hit. Adafruit have code for this chip in both Arduino and CircuitPython.
Class D Audio Amplifier - Drive a 8O 1Watt speaker or 4O 3W speaker for sound effects. Plug and play with Adafruit's cute and slim oval speaker, or connect a picoblade cable for your favorite speaker. For use only with Feathers that have analog audio out such as the Feather M0 Express and M4 series.
Low power mode! The power system for the RGB LED, NeoPixels and speaker amplifier can be controlled by a pin to cut power to them, so you have lower power usage when the prop is in sleep or off mode (but can wake up fast by listening to the button press or accelerometer data). When the power pin is set low, the current draw for just the wing is under 1mA and no there's current draw from any attached NeoPixels - normally they're about 1mA even when not lit.
Breakouts plus strain-relief hole for the enable pin and ground (for a mechanical switch that will power down the whole board)
Breakouts plus strain-relief holes for an external switch pin and ground (for a mechanical mode button)

Please note: A few of the onboard hardware elements use PWM and analog output so they recommend the Feather M0 Express or Feather M4 series, they'll work best with this wing and let you make the most of it. For example:

Feather 32u4 and 328p do not have PWMs for all the RGB LED pins, and no analog audio output support
Feather nRF52, ESP32 ESP8266 do have PWMs on all the RGB LED pins but no analog audio output support
Feather M0 basic boards only have audio output support in Arduino, not CircuitPython.

That doesn't mean you can't use this 'wing with the Feather ESP8266 or nRF52832, just that you won't get any sound effects. You can still use the accelerometer, NeoPixels, RGB LED, etc.

As you can tell, the M0 Express and M4 series is what Adafruit recommend cause you'll get everything and with CircuitPython, its really easy to play audio directly off the built in flash chips!

Comes as an assembled wing with some header. Some light soldering is required to attach to your Feather.

Technical Details

Product Dimensions: 50.7mm x 22.8mm x 7.2mm / 2.0" x 0.9" x 0.3"

Product Weight: 4.8g / 0.2oz
