Customers have asked Adafruit to carry basic perf-board, but Adafruit never liked the look of most basic perf: its always crummy quality, with pads that flake off and no labeling. Then Adafruit thought about how people actually prototype - usually starting with a solderless breadboard and then transferring the parts to a more permanent PCB. That's when Adafruit realized what people would really like is a proto board that makes it easy!

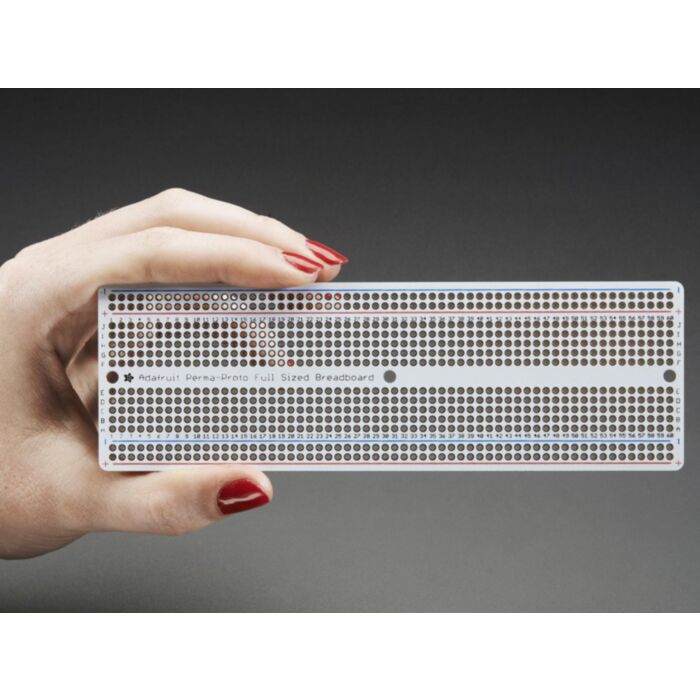

This proto-board is the PCB you always wish you had, but never realized it! Adafruit took the basic layout of a full-sized breadboard (the PCB has 60 rows instead of 63 rows) and turned that into a beautiful PCB. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy. The bottom has the 5-hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so you can easily cut traces when necessary. Adafruit used 1.2mm diameter drill holes so even parts with big leads will fit. All holes are thru-plated for strength - these wont peel off with rework. The finish is a gold plate - you won't get oxidation like with bare copper perf! There are also three mounting holes so you can attach the PCB to your project box.
Once you use a Perma-Proto board, you'll never go back!
Adafruit Perma-Proto Full-sized Breadboard PCB - Single (4:31)
Documentation and Resources:
