Adafruit Multi-pitch FPC Adapter - 40 Pin 0.5/0.6/0.7/0.8/1.0mm

SKU: ADA1436 Brand: Adafruit

You will roll lucky 7's and connect to nearly any kind of FPC/flex cable with Ladyada's Super Lucky 40-pin FPC to breadboard adapter plate. You get 40 pads of 0.5mm...

$10.55 AUD, inc GST

$9.59 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 03 and Jan 07

Quantity Discounts:

10-25 $9.21 (exc GST)
25+ $8.92 (exc GST)

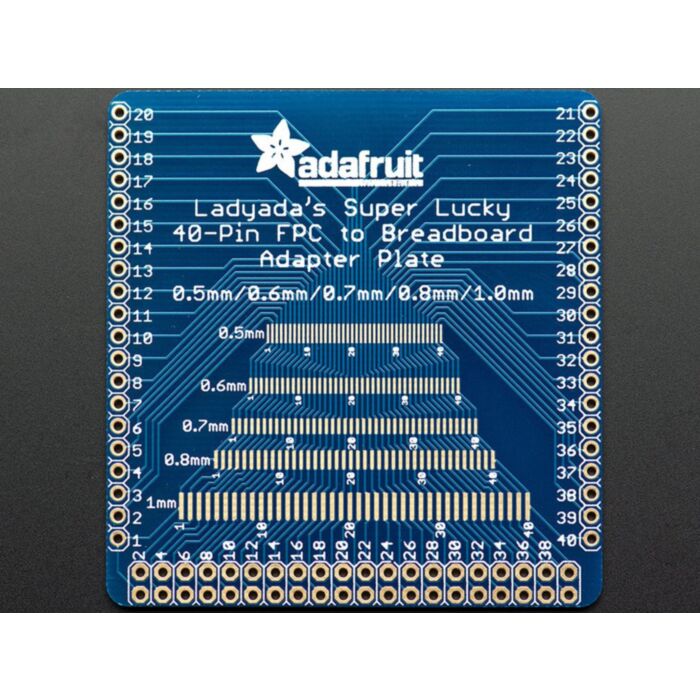

You will roll lucky 7's and connect to nearly any kind of FPC/flex cable with Ladyada's Super Lucky 40-pin FPC to breadboard adapter plate. You get 40 pads of 0.5mm, 0.6mm, 0.7mm, 0.8mm or 1.0mm. It may even work for some 2.0mm pitch connectors. Adafruit designed this for use in house, to quickly connect to FPCs Adafruit need to test. But They also thought it might be useful for Adafruit's customers. Each pad is broken out to both a 2x20 0.1" spaced header as well as two strips of 20-pin long 0.1" spaced header 2.1" inches apart. It can accommodate most ZIF and snap connectors or just solder the FPC directly on. This adapter will make prototyping much easier on you!

Each order comes with a single-sided PCB plate no header or other connectors included.

Adafruit Multi-pitch FPC Adapter - 40 Pin 0.5/0.6/0.7/0.8/1.0mm (5:55)

Technical Details

Dimensions: 55.86mm / 2.19" x 58.46mm / 2.3" x 1.63mm / 0.06"
