6-Pin Female-Female JST SH-Style Cable 40cm

SKU: POLOLU-4768 Brand: Pololu

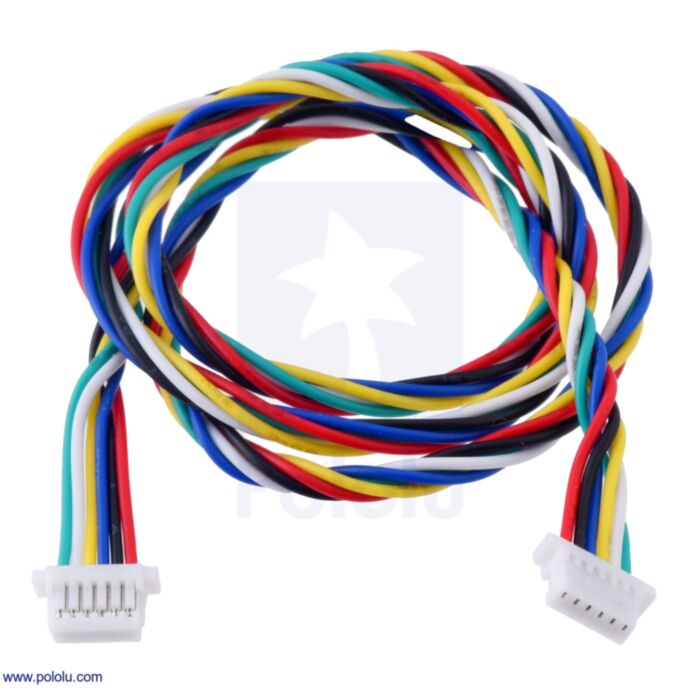

This 40 cm (16") cable has six 28 AWG wires and 6-pin female JST SH-type connectors on both ends. These connectors work with our Micro Metal Gearmotor ...

$4.95 AUD, inc GST

$4.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $4.32 (exc GST)
25+ $4.18 (exc GST)

This cable is designed to work with Pololu's Micro Metal Gearmotor Encoders with top-entry connector and with side-entry connector. It consists of six twisted 28 AWG color-coded wires that are terminated on both ends by female JST SH-type connectors.

You can use the cable to connect an encoder to Pololu's JST SH-style connector breakout board (available in top-entry and side-entry versions), allowing you to easily access the motor and encoder pins on a standard solderless breadboard. Alternatively, a cable with two connector breakout boards could serve as a removable general-purpose interconnect between different parts of a modular system.

Use with Micro Metal Gearmotor Encoders

When used with Pololu's encoders, the wire color scheme is as follows:

Color	Function
Red	motor power (connects to one motor terminal)
Black	motor power (connects to the other motor terminal)
Blue	encoder Vcc
Yellow	encoder A output
White	encoder B output
Green	encoder GND

For more information on how to use the encoders, see the encoder product pages.

Available options

Pololu's female-female cables are available in five lengths:

Pololu also have single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, available in three cable lengths:

People often buy this product together with:

Magnetic Encoder Pair Kit with Top-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V

6-Pin Female-Female JST SH-Style Cable 25cm

6-Pin Female-Female JST SH-Style Cable 63cm

Dimensions

Pins:	1×6
Length:	40 cm
Weight:	4 g

General specifications

Gender:	Female-Female
Wire gauge:	28 AWG
Connector:	JST SH-type
