5mm Triple Output LED RGB - Common cathode (20 PCs) (Seeed Studio)

Rating:
100% of 100
SKU: SS104990023 Brand: Seeed Studio

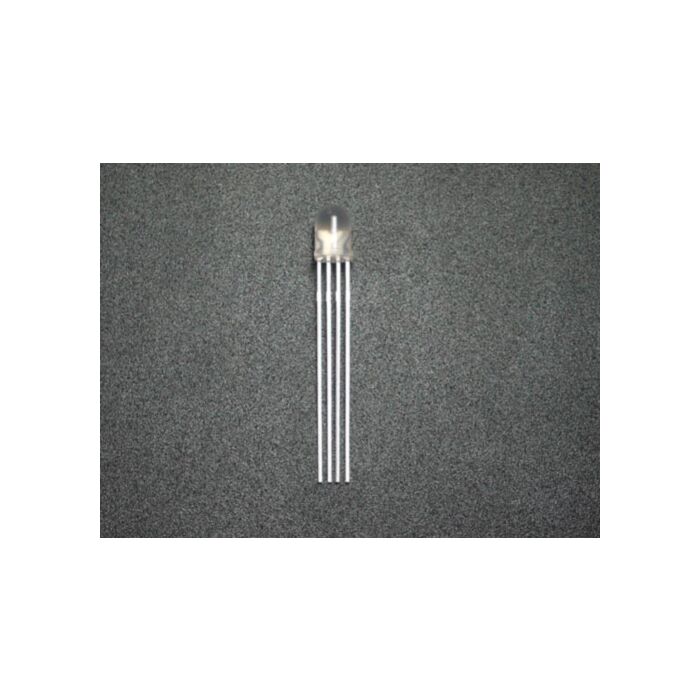

Illustration above indicating a 5mm RGB LED (Red Green Blue) with four pins. Triple output one for each color with a common cathode.This LED can be used...
$10.50 AUD, inc GST
$9.55 AUD, exc GST

Quantity Discounts:

  • 10-25 $9.16 (exc GST)
  • 25+ $8.87 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Illustration above indicating a 5mm RGB LED (Red Green Blue) with four pins. Triple output one for each color with a common cathode.This LED can be used for three status indicators or pulse width modulates all three and gets mixed colors!  This pack contains 20 units of 5mm LED RGB - Common Cathode.

Chip Material

Lens Type

Emitting

Forward Voltage(V)

Dominant Wavelength(nm)

Luminous Intensity(mcd)

Reverse Current(uA)

Viewing Angel(deg)

InGaN

Water Clear

Red

1.8/2.5

615/645

200/600

10

±60

InGaN

Water Clear

Green

2.8/4.0

455/480

200/400

10

±60

InGaN

Water Clear

Blue

2.8/4.0

500/540

300/800

10

±60

IF=20mA

IF=20mA

IF=20mA

VR=5V

IF=20mA

Note:

 Forward Voltage (RGB): (2.0, 3.2, 3.2) V

 Luminosity (RGB): (800, 400,900) mcd
