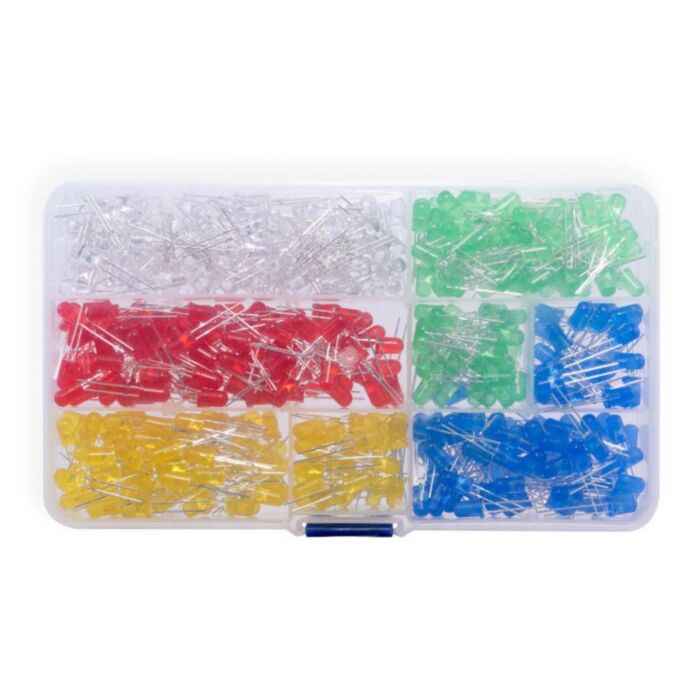

5mm LED Kit 500pcs (100x Red Green Blue Yellow White)

Rating:
100% of 100
SKU: CE08575 Brand: Makerverse
This kit will ensure your equip your Makerspace, classroom or workshop never runs out of LEDs!
$15.20 AUD, inc GST
$13.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

Quantity Discounts:

  • 5-15 $13.55 (exc GST)
  • 15+ $13.13 (exc GST)
- +

35 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The LED is arguably one of the most essential components in any maker project, from the Blink sketch and beyond. This kit will equip your workspace with plenty of the most common LEDs you'll ever need. You'll have 100 LEDs in the following colors to mix into your projects; Red, Green, Yellow, Blue and White (That's 500 total).

Ideal for Makers - 5mm through-hole LEDs are simply put, the most common LED you'll see in most projects. You can insert them straight into your breadboard, solder them into veroboard, connect out to GPIO pins, or even mount them into a project panel as indicator lights.

Assorted Colors - With 5 colors to choose from, you'll have options for different uses.

Connection and compatibility - We find that these LEDs work well with between 2.5 - 3V at around 20mA current.

How to use these LEDs in your project

When using LEDs the first thing you need to be aware of is that they are polarised components. Identify the Anode and Cathode legs of your LED. The quick and easy way is that the short leg is the Cathode (connected to GND/Negative). Next, you'll typically need a resistor in series to protect the LED from burning itself out, check out our Ohms law guide to size one for your project. There are many creative ways to use LEDs in your projects, but this should let you hit the ground running.

We're wizards with LEDs (if we do say so), incorporating them into projects left-right and center. We wrote one of the most comprehensive guides on LEDs that goes in-depth on all aspects of LEDs. If you need any help with LEDs in your projects, we're here to help!

Technical Specifications

  • Voltage:1.8-2.2V (Red, Green, Yellow)
  • Voltage:2.4-2.7V(White, Blue)
  • Max current: 20mA
  • Recommended current: 16-18mA
  • Size: 36x5x5mm
