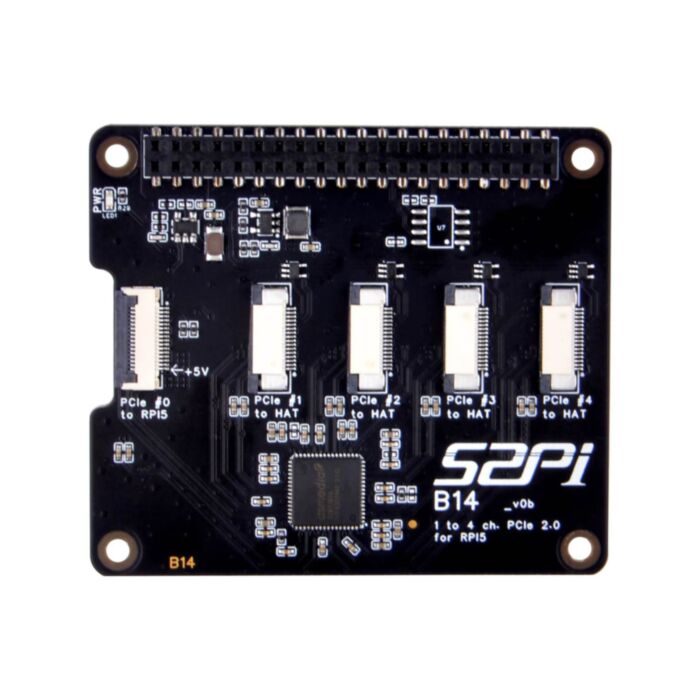

52Pi B14 Quad FPC PCIe HAT for Raspberry Pi 5

SKU: CE10307 Brand: Core Electronics

Expand a Pi 5's FPC PCIe into four ports with a daisy-chainable PCIe switch, enabling multiple SSDs, GPUs or network interfaces with included FPC ribbon cables.

$63.10 AUD, inc GST
$57.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Turn the Raspberry Pi 5 FPC PCIe into serious project I/O with the B14 Raspberry Pi HAT. It multiplies the single-board interface into four via an onboard PCIe switch for tidy, reliable multi-device builds.

Ideal for high-speed storage arrays, add-in networking, or modular prototyping, B14 supports daisy chaining for multi-level PCIe topologies, while keeping the familiar Raspberry Pi HAT footprint for neat mechanical integration.

Technical Specifications

Expansion Quad PCIe expansion from a single FPC PCIe link
PCIe switch ASMedia PCIe switch, Gen2 variant
Daisy chaining Yes, chain multiple B14 units for multi-tier PCIe
Form factor Raspberry Pi HAT format, 65 x 56.50 mm
GPIO connector Standard 40-pin Raspberry Pi HAT connector supported
Typical device types PCIe SSDs, GPUs, network cards, and other PCIe devices
Included cabling Three FPC ribbon cables
Compatibility note Not compatible with the official Raspberry Pi SSD kit

What's Included

  • 1 x B14 Raspberry Pi HAT
  • 3 x FPC ribbon cables
