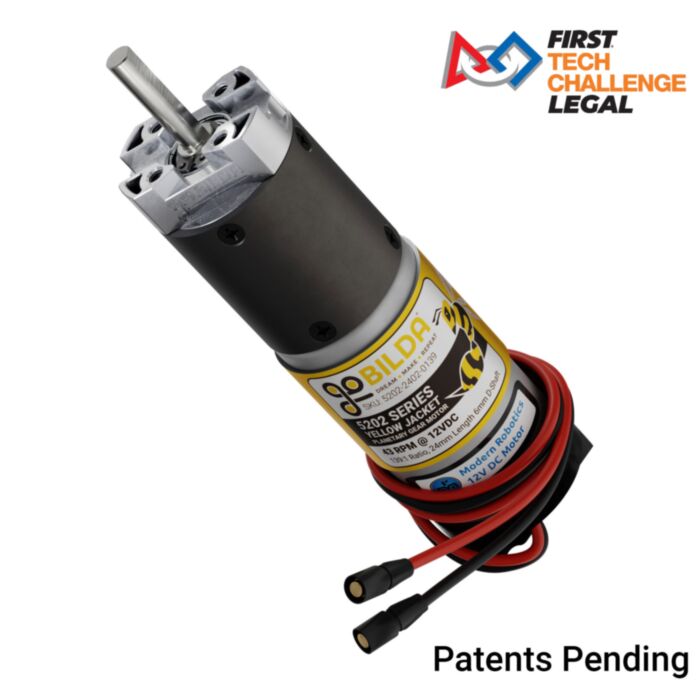

5202 Series Yellow Jacket Planetary Gear Motor (139:1 Ratio, 24mm Length 6mm D-Shaft, 43 RPM, ø36mm Gearbox, 3.3 - 5V Encoder)

SKU: GB-5202-2402-0139 Brand: goBilda
This 139:1 ratio gear motor runs at a no-load speed of 43RPM when 12VDC is applied. Mounted to the back of the
$84.10 AUD, inc GST
$76.45 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 01

Quantity Discounts:

  • 10-25 $72.64 (exc GST)
  • 25+ $68.81 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 139:1 ratio gear motor runs at a no-load speed of 43RPM when 12VDC is applied. Mounted to the back of the Modern Robotics/MATRIX 12VDC Motor driving the gearbox is a quadrature encoder able to run on both 3.3V and 5V. Its bullet connectors are a reliable connection style that allows you to easily reverse polarity to the motor and pass its wires through 14mm holes in goBILDA® channel, even when grommets are installed.

Downloads

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC
Output Shaft 6mm D
Gearbox Style Planetary
Gear Ratio 139:1
Gear Ratio Formula ((((1+(46/11))) * (1+(46/11))) * (1+(46/11))):1
Gear Material Steel
No-Load Speed @ 12VDC 43 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 185 kg.cm (2,570 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 3,895.9 PPR at the Output Shaft
Encoder Resolution Formula (((((1+(46/11))) * (1+(46/11))) * (1+(46/11))) * 28)
Weight 483g
IP Patented
