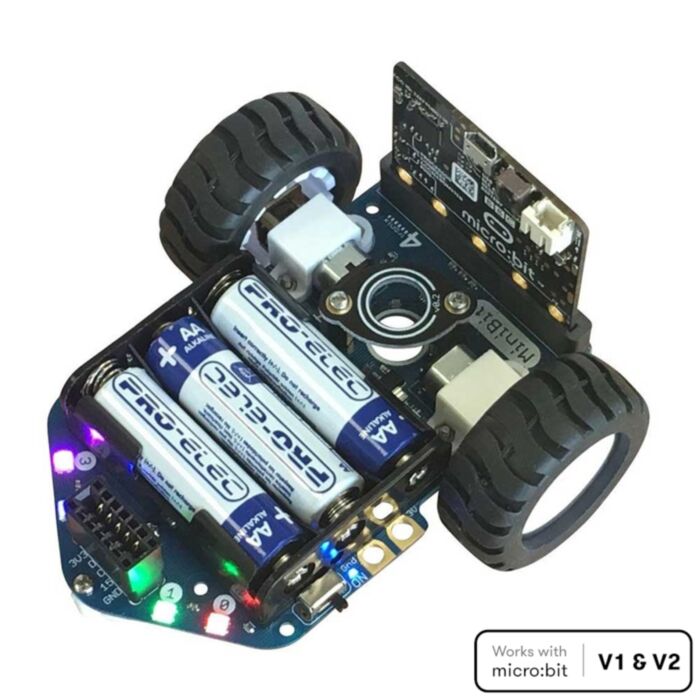

The Minibit is the younger sibling of the popular and well-loved Bit:Bot. It comes ready-built (wheels need pushing on, and the pen holder top part can be screwed on if required).

A Makecode extension is available - just search for Minibit in the Advanced/Extensions tab. Blocks available for driving the motors, LEDs and optional ultrasonic sensor and line follower module.

Check out these features:

Works with both the micro:bit V1 and micro:bit V2 ¹
2 micro-metal gear motors. Both fully controllable in software, for both speed (0 to 100%) and direction (forward or reverse)
Fully enclosed gearboxes to minimise the ingress of dust and fluff
Wheels with rubber tyres for maximum grip
Metal ball front caster
4 "Smart RGB" LEDs along the front. Select any colour for any pixel, produce stunning lighting effects as your Minibit moves around
Integrated pen holder sits directly between the wheels for best operation. Designed for Sharpie felt tips but any pen with 10mm end shaft will fit
Powered from integrated 3xAA battery holder with on/off switch and blue indicator LED
Easily plug your BBC micro:bit in and out using the edge connector
Microbit pins 0, 1, 2 as well as 0V and 3V brought to croc-clip friendly edge connections
Robust connector for optional Ultrasonic sensor (and other possible addins)

NB. Batteries, Microbit and ultrasonic sensor NOT included

¹There may be some rare cases where there are incompatibilities. BBC are working closely with accessory makers to ensure your accessories will continue to work in the same way.
