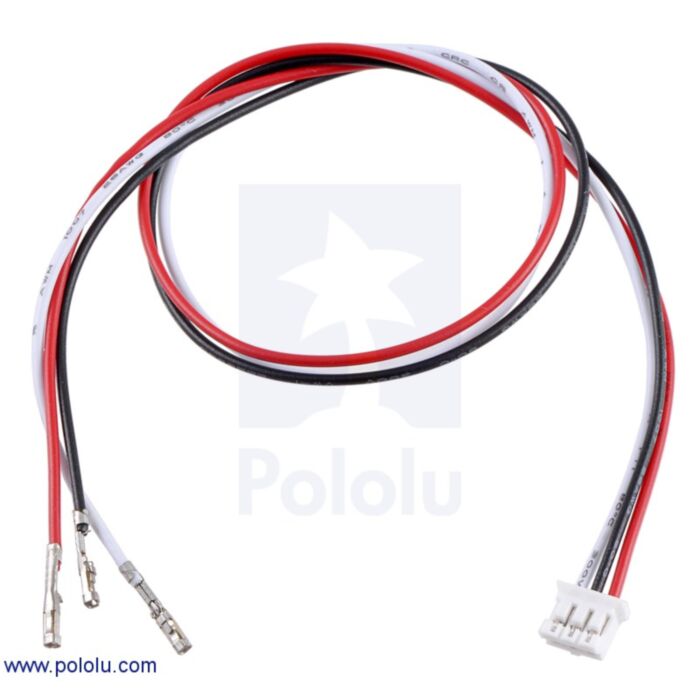

3-Pin Female JST PH-Style Cable (30 cm) with Female Pins for 0.1" Housings

SKU: POLOLU-1798 Brand: Pololu

This 12-inch (30-cm) cable has 26 AWG wires and a 3-pin female JST PH-style connector that mates with the connector on 3-pin Sharp analog distance sensors. The other ends of the wire are terminated with female pins for 0.1" housing. The wire color scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

$2.90 AUD, inc GST

$2.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $2.53 (exc GST)
25+ $2.45 (exc GST)

This 12-inch (30-cm) cable has 26 AWG wires and a 3-pin female JST PH-style connector (2 mm pitch) that works with Sharp analog distance sensors that have mating PH connectors, such as the 4-30 cm GP2Y0A41, the 10-80 cm GP2Y0A21, and the 20-150 cm GP2Y0A02.

Note: This cable is not compatible with the 2-15 cm Sharp GP2Y0A51, which has a JST ZH connector. For a cable that works with that sensor, consider the 3-Pin Female JST ZH-Style Cable.

The other ends of the wires are terminated with female crimp pins that are compatible with Pololu's 0.1" crimp connector housings. The wire color scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

You can use Pololu's 0.1" 3×1 crimp connector housing to make a connector that is compatible with the standard 0.1" male headers included with many electronics boards.

Pololu carry a version of this cable with pre-crimped male pins (for use with solderless breadboards, perfboards, and 0.1" female headers). Pololu also carry a version with unterminated ends for use with custom connectors.

People often buy this product together with:

Sharp GP2Y0A21YK0F Analog Distance Sensor 10-80cm

0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black

3-Pin Female JST PH-Style Cable (30 cm) with Male Pins for 0.1" Housings

Dimensions

Length:	30 cm

General specifications

Gender:	Female-Female
Wire gauge:	26 AWG

File downloads

JST PH Connector Datasheet (168k pdf)

This product is listed in:

Cables>Cable Assemblies
