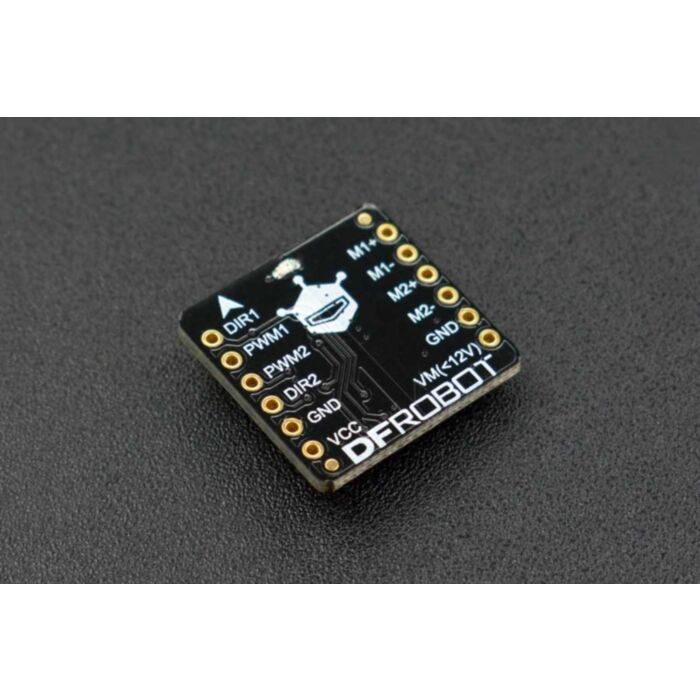

2x1.2A DC Motor Driver (TB6612FNG)

SKU: DRI0044 Brand: DFRobot

This DFRobot micro dual way DC motor driver is design based on TB6612FNG motor driver IC. It inherits DFRobot L298N motor control logic, which only need four pins...

$7.55 AUD, inc GST

$6.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $6.59 (exc GST)
25+ $6.38 (exc GST)

This DFRobot micro dual way DC motor driver is design based on TB6612FNG motor driver IC. It inherits DFRobot L298N motor control logic, which only need four pins to drive 2 motors. Compared with the IC Breakout, it saves two precious GPIO resource, especially in Arduino UNO board.
TB612FNG is a dual-channel full-bridge drive chip. The maximum continuous drive current of single channel can reach 1.2A, peak value 2A/3.2A (continuous pulse / single pulse) , which can drive some micro DC motors. The control logic is similar to L298n, and the code can be directly compatible with the DFROBOT L298N motor driver. Standard XH2.54 pin can be inserted directly into the breadboard. It is a good choice for DIY project or product developments.

Specification

VCC Operating Voltage: 2.7V~5.5V
VM Input Power: 2.5V~12V
Driver Channel: 2 channel
Output Current: 1.2A (single-channel continuous drive current)
Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
Dimension: 0.79 x 0.77(in) / 20 x 19.50(mm)

Documents

Parts List

2x1.2A DC Motor Driver (TB6612FNG) x1
XH2.54-6Pin x2

This product is listed in:

Breakouts & Modules>Motor Drivers & Controllers>Brushed DC Motor Drivers
