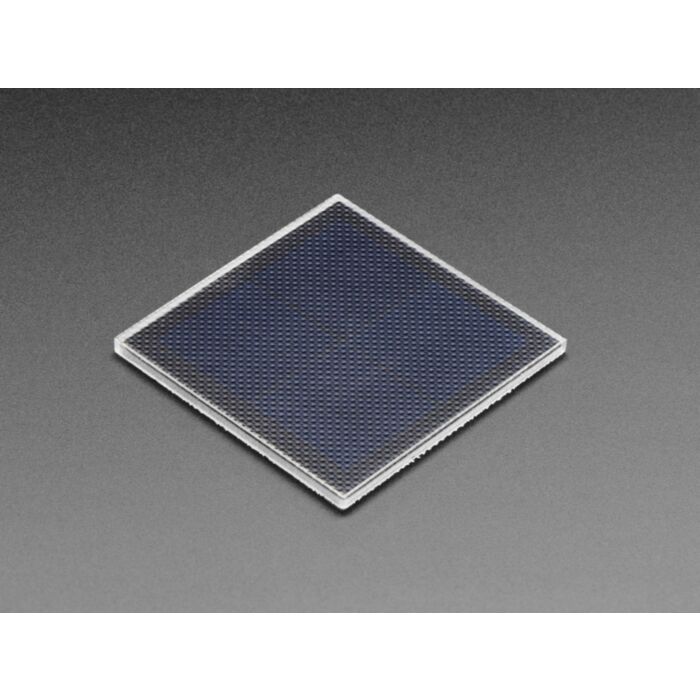

2V 0.3W Mini Solar Panel - ETFE - Voltaic P121

SKU: ADA5853 Brand: Adafruit
These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV-resistant, and...
$14.50 AUD, inc GST
$13.18 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 03 and Jun 05

Quantity Discounts:

  • 10-25 $12.65 (exc GST)
  • 25+ $12.25 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV-resistant, and they use four high-efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). The panel is made of 4 cells with a nominal voltage of 0.5V each, so they call this a "2V" panel

They output a nominal 2V at 150 mA peak via two solder-able pads on the back. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.

Unlike the larger panels, these don't come with a connector. Instead, there are two pads on the back. To connect, Adafruit recommend soldering two wires and attaching a 2.1mm terminal block. (Or you can cut off the alligator clips from a 2.1mm-to-clip adapter)

Note that these will not work with Adafruit's solar charger boards (they expect 5.5 or 6V panels) but there may be projects that can either benefit from a smaller voltage panel, such as power harvesting circuits. Or, you could connect 3 of these in series to get nominal 6V output.

Technical Details

Features

  • Waterproof (IP67)
  • UV resistant (5-7 year life)
  • Durable and lightweight
  • High-efficiency monocrystalline cells: 22+%
  • 2x Solder Pads

Size and Weight

  • 52 x 52 x 3.1mm
  • 8.2 grams

Construction

  • Matte ETFE coating
  • 1.5mm double-sided PCB

Warranty

  • 2-year warranty on solar panels
  • For more warranty information, see the warranty guide

Product Dimensions: 52.0mm x 52.0mm x 2.7mm / 2.0" x 2.0" x 0.1"

Product Weight: 11.0g / 0.4oz

RoHS 2 2011 65 EU Compliant
